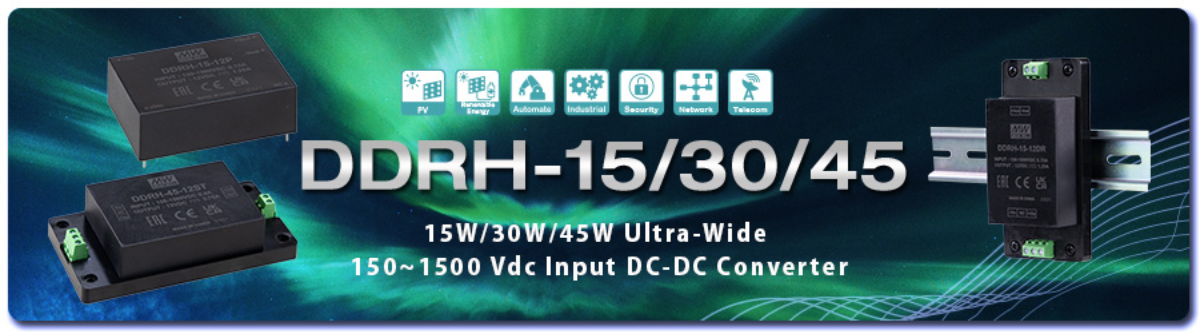

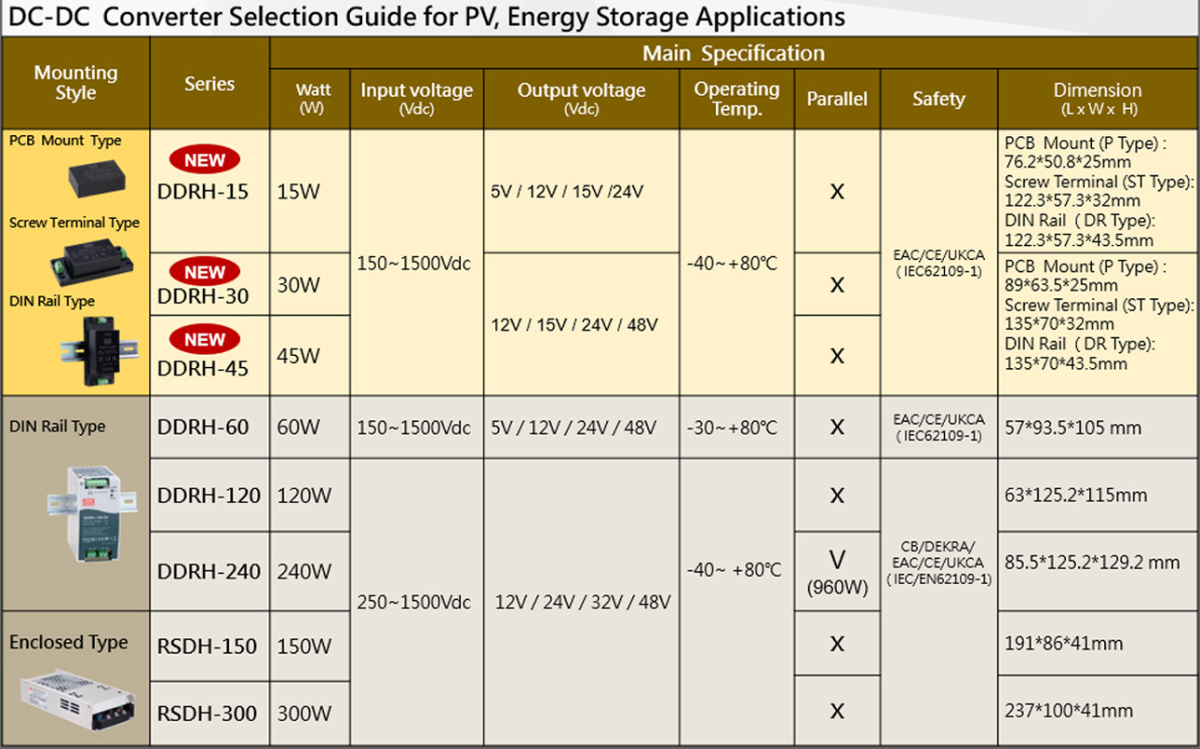

Following the DDRH-60/120/240 and RSDH-150/300 series ranging from 60 to 300W (details provided in the table below), we are now introducing a new ultra-wide input range DC-DC small wattage converter: the DDRH-15/30/45 series, capable of handling 150~1500 Vdc.

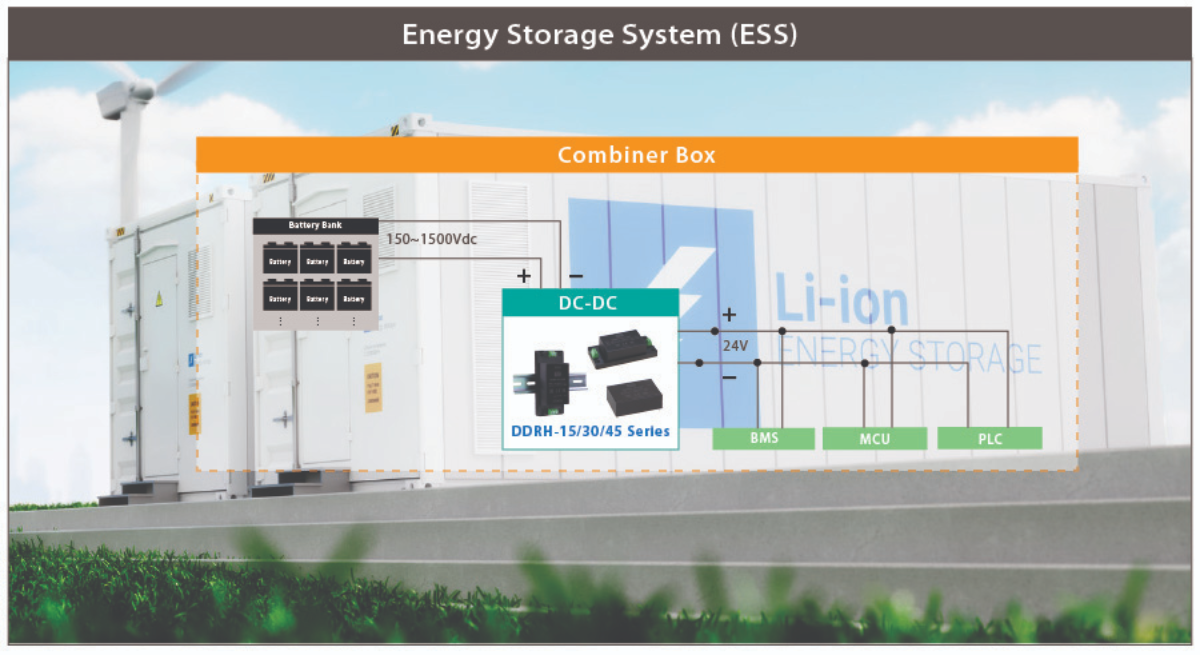

The DDRH-15/30/45 series boasts several key features: versatile installation options (PCB Mounting, Screw Terminal, and DIN Rail types), an ultra-wide input voltage range of 150~1500 Vdc, wide-temperature operation from -40 to +80°C, high isolation input/output protection of 4K Vac, suitability for altitudes up to 5,000 meters, and compliance with IEC62109-1 photovoltaic certification. These converters are ideal for applications in photovoltaics, energy storage, charging stations, or any equipment and systems requiring high-voltage to low-voltage conversion.
