MDS01/02-N & MDD01/02-N Series: 1W/2W Module Type Medical Grade Unregulated & Isolated DC/DC Converter
Date:2024/04/01

INTRODUCTION
Following the release of the MDS01/02 and MDD01/02 series, MEAN WELL has recently introduced the new MDS01/02-N and MDD01/02-N series of medical-grade DC-DC converters, offering improved cost performance. The key distinctions between the previous and latest generations are outlined below:

These four series boast an ultra-low leakage current of less than 2μA, feature 1×MOPP/2×MOOP and 6KVdc reinforced isolation, and comply with the LVD IEC60601-1 medical regulations. They are ideally suited for terminal medical devices that require enhanced system insulation and minimized leakage current, ultimately enhancing the overall system safety. This helps prevent the risk of electric shock to patients, making them perfect for applications such as electrocautery knives in operating rooms, medical screens, dissolved oxygen monitors, medical carts, oral care equipment, health examination devices, and more.
FEATURES
· SIP7 single row PIN international standard universal pin
· Input voltage range ±10%
· Ultra-low leakage current < 2μA
· 6KVdc input/output reinforced isolation
· -40 ~ +95℃ ultra wide temperature
· Protection: Short Circuit (Continuously)
· Safety certification: CB/UL/EAC/CE/UKCA
· Medical IEC60601-1 (1×MOPP /2x MOOP), ITE IEC/UL62368-1
· Dimensions: 19.7 x 7.1 x 11.5 mm
· 3 years warranty

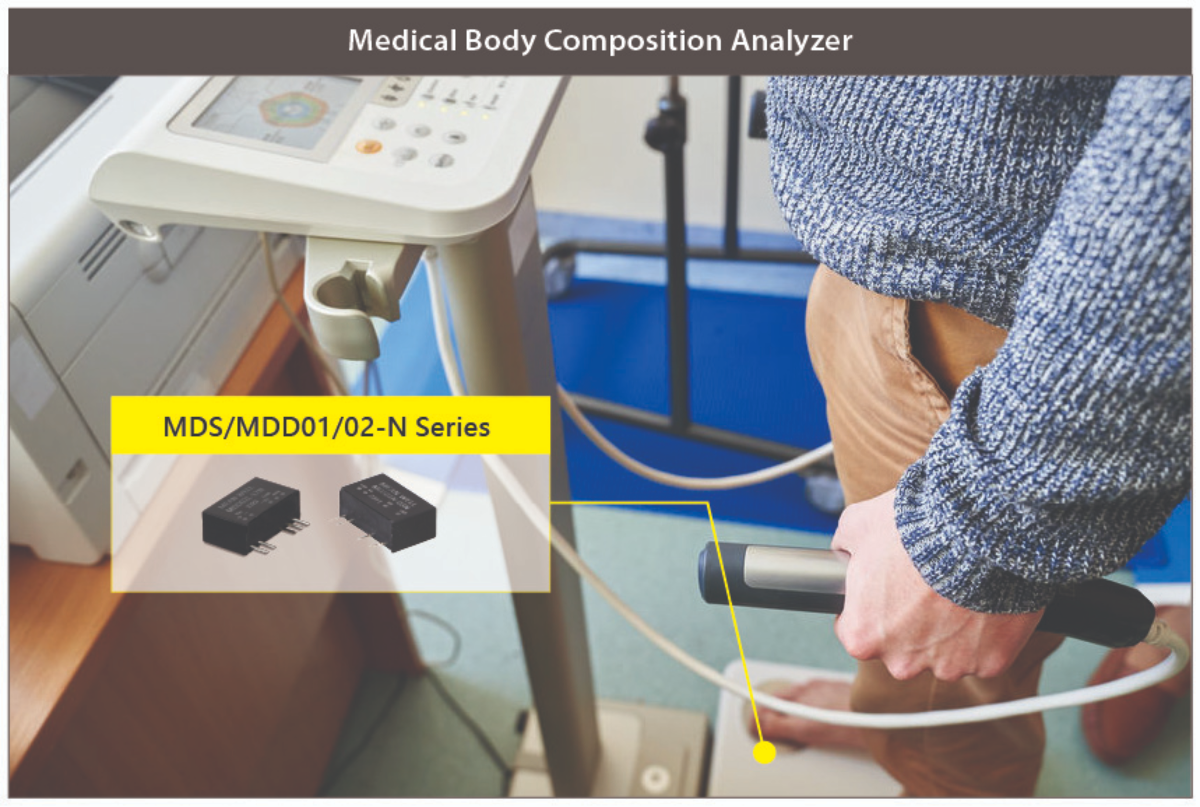

APPLICATION

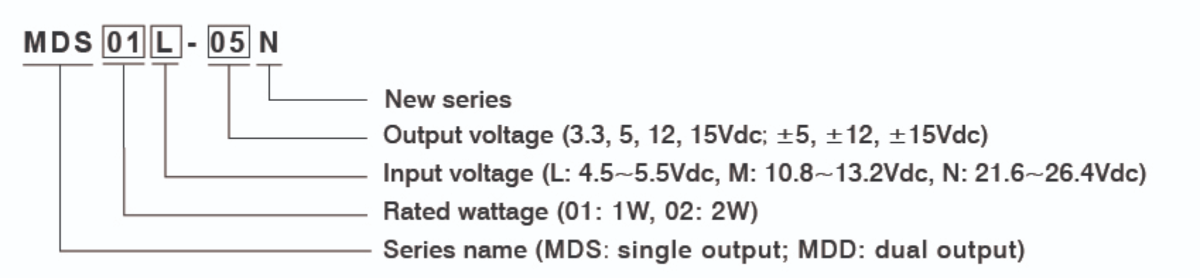

ORDER INFORMATION
