NGE12/18 Series: 12W/18W Global Certified AC Interchangeable Wall Mount Green Adaptor

Date:2023/12/22

INTRODUCTION

The MEAN WELL GE/GEM/GS/GSM/SGA/SGAS range of wall-mounted energy-saving adapters and associated products have garnered widespread market acclaim for their superior quality and extended lifespan. Since their debut, cumulative sales have surpassed millions of units, serving a diverse array of industries including information and communication, security, medical, and more. To address the growing demand for lightweight, portable designs, broader operating temperature ranges, multi-application capabilities within a single model, and global compatibility, MEAN WELL proudly presents the NGE Series—a new generation of wall-mounted, interchangeable AC adapters with global certifications. The initial offerings include the 12W and 18W NGE12/18 series, with plans to introduce higher wattage models ranging from 30W to 90W in the NGE30/45/65/90 series soon. Stay updated for our forthcoming product announcements!
In contrast to the established 5~18W GE/GEM/GS/GSM/SGA/SGAS series, the NGE12/18 stands out with notable distinctions. Its primary advantage lies in its simultaneous compliance with an extensive array of safety standards, including 62368-1, 60601-1, 61558-1, and 60335-1, along with additional certifications from CCC, BSMI, and PSE. Featuring a sleek, slim profile (28mm), it prevents adjacent outlet blocking and boasts a wide operating temperature range of -30 to +70°C, making it suitable for use in various countries or installations with limited spatial constraints. The overall design conforms to 2xMOPP standards and is suitable for medical BF class applications, among others (details outlined in the table below). This product is a high-quality, long-lasting, and fully certified wall-mounted green adapter, ideal for a range of consumer electronics, travel devices, or any electronic products requiring international compatibility with interchangeable AC plugs.

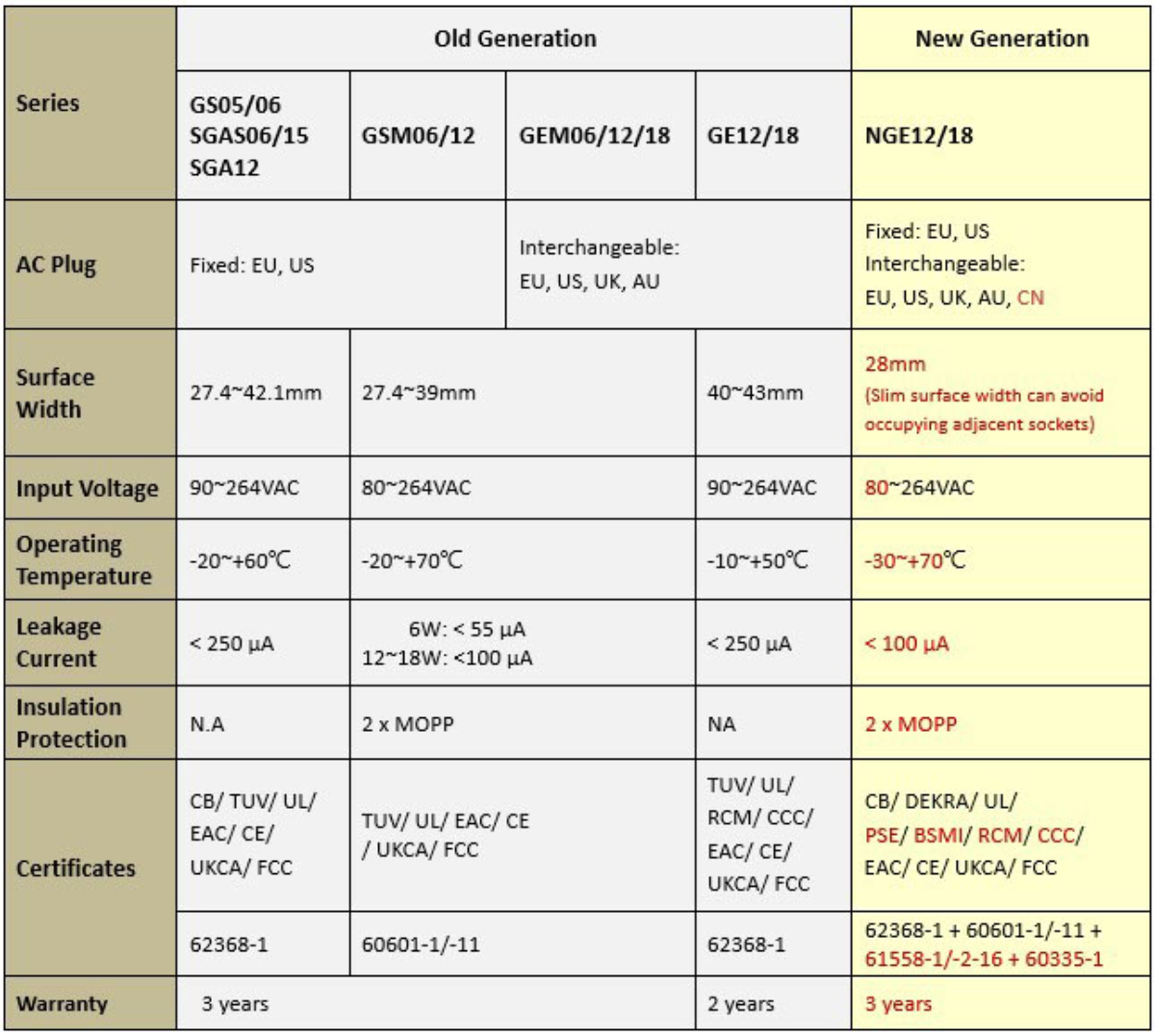

* The NGE12/18 series can replace the old-generation models in this table.

It is strongly recommended to consider adopting the NGE12/18 series for the new project

FEATURES

· Exterior Design Patent Number: 202330347779.4
· Interchangeable AC plugs (EU, US, UK, AU, CN)

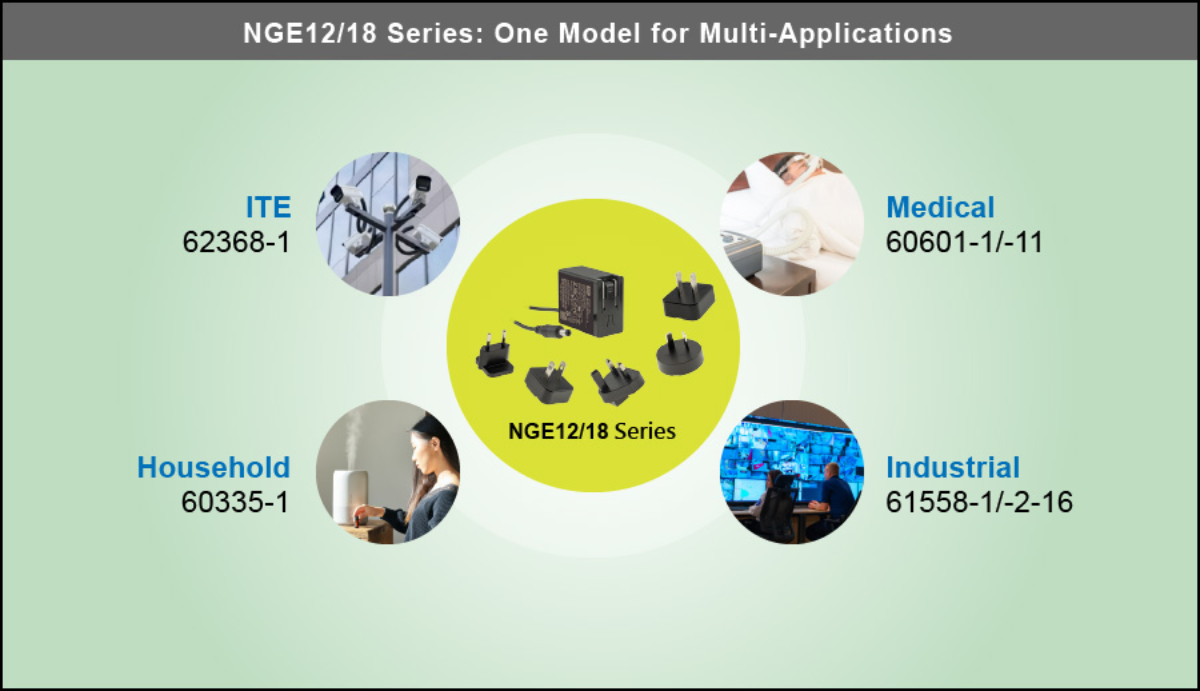

· Complies with multiple international certifications in various fields(ITE, Medical, Industrial, Household)
· Input range of 80~264Vac, no-load standby power <0.075W
· Complies with Level VI international energy efficiency standards(EISA 2007/DoE, NRCan, MEPS, ErP, and CoC Version 5)
· Extremely low leakage current <100µA, complies with 2xMOPP, suitable for BF medical applications
· Wide operating temperature range of -30~+70℃
· Protections: Short Circuit, Overload, Overvoltage
· Complies with LPS (Limited Power Source) requirements
· Utilizes 94V-0 high flame-retardant plastic housing for safety and reliability
· Various DC plugs available (Accessories sold separately)
· 3 years warranty

APPLICATION

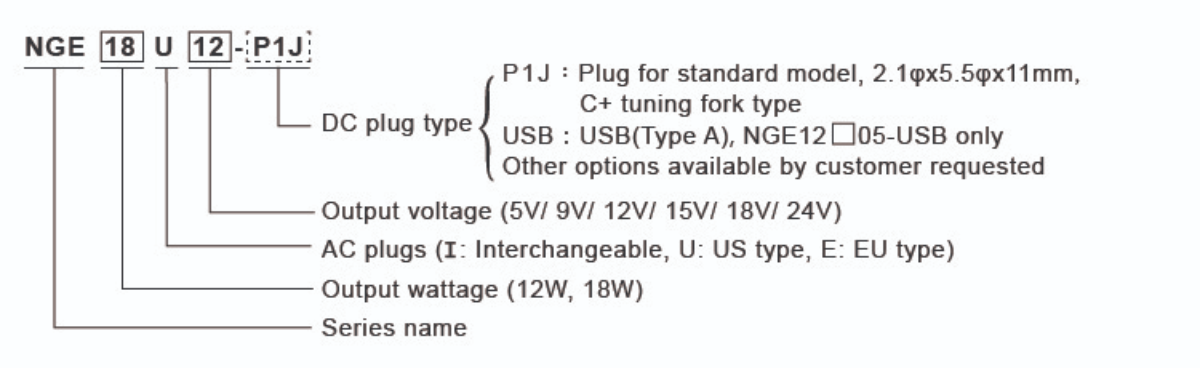

ORDER INFORMATION
