NGE 30/45/65/90 Series: 30W~90W Global Certified AC Interchangeable Wall Mount Adaptor
Date:2024/01/18

INTRODUCTION
MEAN WELL, a global leader in standard power supplies, has introduced the NGE30 / 45 / 65 / 90 series of wall-mounted AC adaptors, offering wattages ranging from 30W to 90W. This expansion follows the successful launch of the energy-efficient NGE 12/18 series, which includes 12W and 18W next-generation interchangeable wall-mounted AC adaptors. With this addition, MEAN WELL now provides a comprehensive range of power options, encompassing 12W, 18W, 30W, 45W, 65W, and 90W, making it the most extensive lineup of wall-mounted adaptors available in the market.
Unlike the long-standing SGA / SGAS / GSM / GE / GEM series, which range from 24~60W, the NGE 30 / 45 / 65 / 90 series stands out due to its compliance with various safety standards such as 62368-1, 60601-1, 61558-1, and 60335-1, as well as additional certifications from CCC, BSMI, and PSE. With a slim profile of 30mm, these adaptors prevent adjacent outlet occupation and are suitable for use in various countries or installations with limited space. They also feature a wide temperature range of -30 to +70°C and comply with 2xMOPP, making them applicable to medical BF class devices and more (detailed specifications are listed in the table below).
As a high-quality, long-lasting, portable, and fully certified wall-mounted green adaptor, the NGE30 / 45 / 65 / 90 series is ideal for a wide range of consumer electronics, travel devices, or any electronic products that require international compatibility with interchangeable AC plugs.

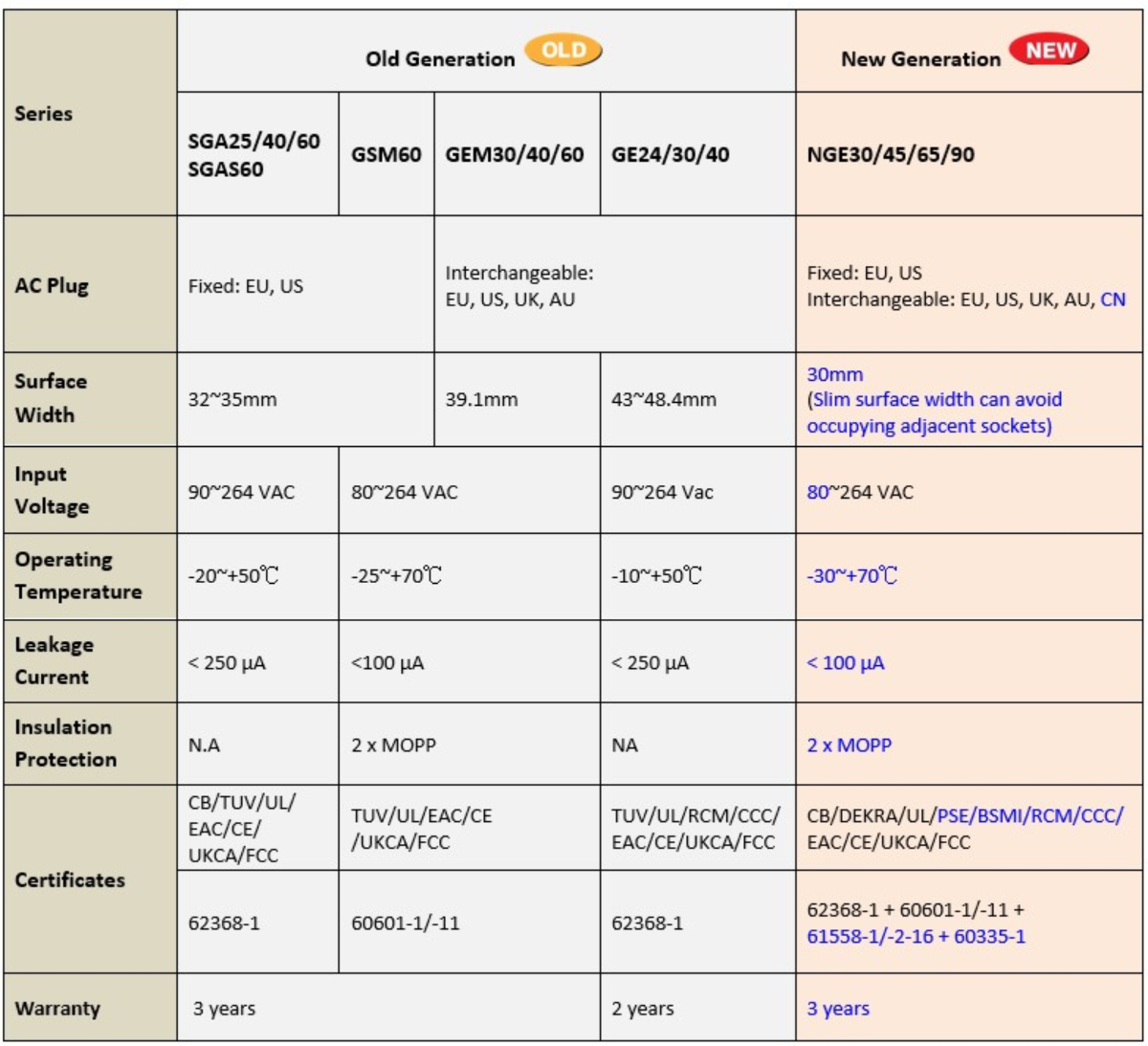

* The NGE 30 / 45 / 65 / 90 series can replace the old-generation models in this table.
It is strongly recommended to consider adopting the NGE 30 / 45 / 65 / 90 series for the new project

FEATURES
· Exterior Design Patent Number: 202330347779.4
· Interchangeable AC plugs (EU, US, UK, AU, CN)
· Complies with multiple international certifications in various fields(ITE, Medical, Industrial, Household)
· Input range of 80~264 VAC, no-load standby power <0.075W
· Complies with Level VI international energy efficiency standards(EISA 2007/DoE, NRCan, MEPS, ErP, and CoC Version 5)
· Extremely low leakage current <100 µA, complies with 2xMOPP, suitable for BF medical applications
· Wide operating temperature range of -30~+70℃
· Protections: Short Circuit, Overload, Overvoltage
· Complies with LPS (NGE30~65)
· Utilizes 94V-0 high flame-retardant plastic housing for safety and reliability
· Various DC plugs available (Accessories sold separately)
· 3 years warranty
APPLICATION

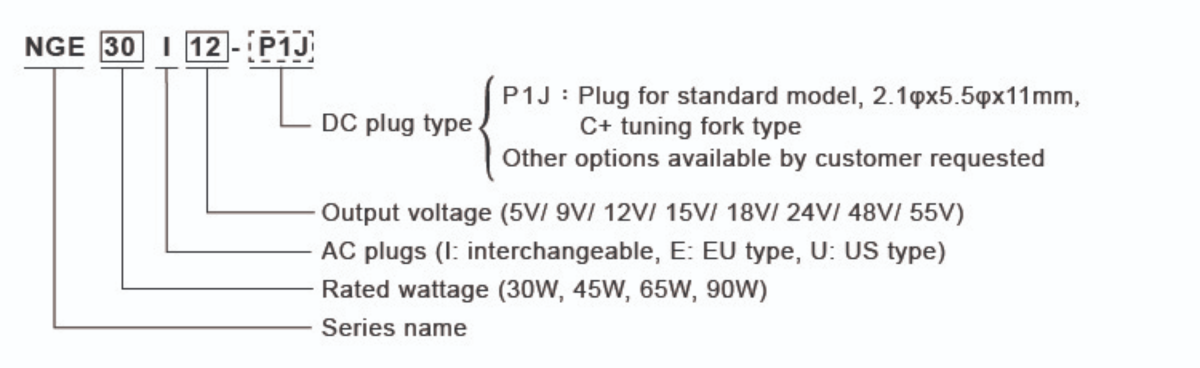

ORDER INFORMATION
