NPB-450-NFC Series: 450W Universal Built-in NFC Intelligent Charger

Date:2023/10/27

NPB-450-NFC Series

INTRODUCTION

MEAN WELL NPB-450 series boasts five key attributes: dual ultra-wide voltage capabilities, the versatility to charge multiple battery types within a single unit (through an exclusive patented intelligent voltage detection charging system), customizable charging parameters, international certifications, and robust safety and durability, positioning it as an all-purpose intelligent charger. Since its debut two years ago, it has garnered widespread praise. To cater to the need for more streamlined and rapid parameter adjustments, we introduce the NPB-450-NFC series: a 450W intelligent charger integrated with near-field communication (NFC) technology for patent-pending wireless communication in close proximity.

The NPB-450-NFC builds upon the foundation of the original NPB-450 series while preserving the majority of its functionalities. The primary distinction lies in its simplified and accelerated method for tweaking charging parameters. Leveraging the MEAN WELL app on a smartphone, users can effortlessly adjust charging settings via NFC, regardless of whether the charger is powered by AC or not. In contrast to the NPB-450, which necessitates linking to a computer through the SBP-001 programmer for configuration, the NFC-enabled model offers a straightforward and hassle-free approach to parameter setting.

This NFC variant obviates the need for an additional SBP-001 programmer and eliminates the use of communication cables, thereby enhancing usability and trimming costs. Furthermore, this product has attained IEC/EN/UL62368-1 information class safety certification, guaranteeing safe operation. It stands out as a highly cost-effective and adaptable smart charger, suitable for charging a wide range of devices, including unmanned forklifts, automotive overhead cranes, floor scrubbers, lawn mowers, mobile robots, camper vans, electric motorcycles/bicycles, unicycles, scooters, and more.

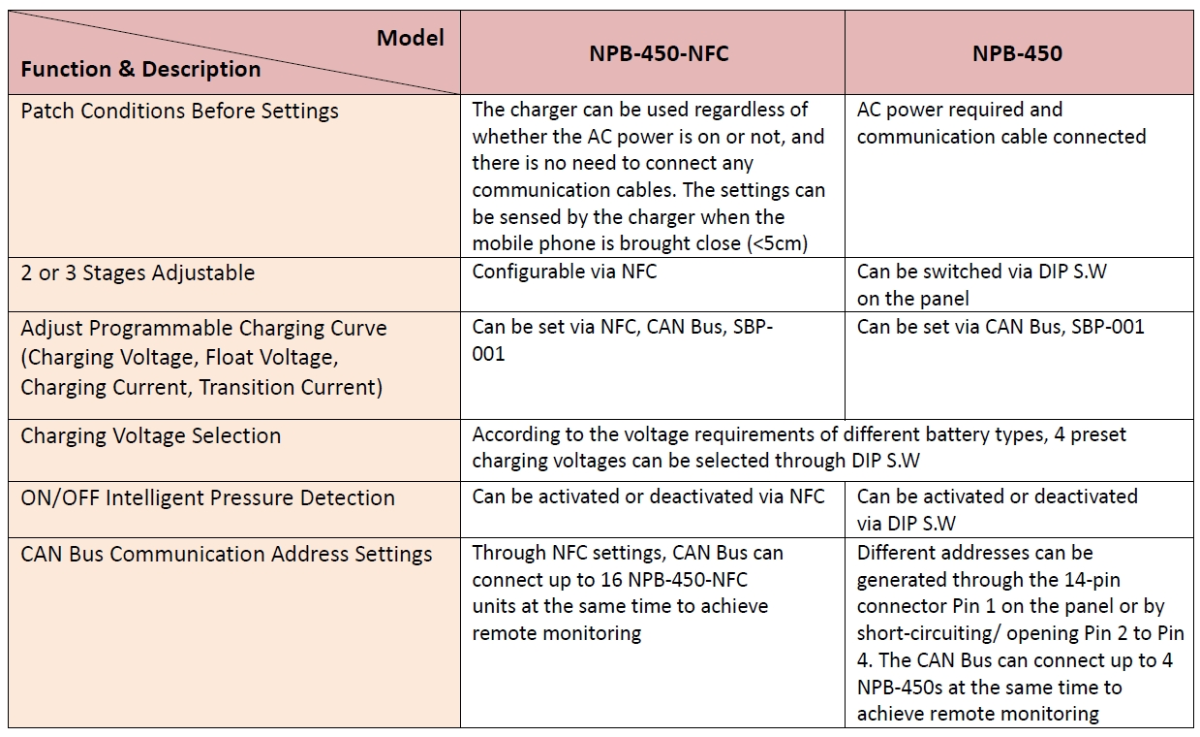

The main functional differences are as follows:

FEATURES

· Ultra-wide voltage automatic detection and charging (10.5~21V, 21~42V, 42~80V, 54~100V)
· Built-in NFC communication interface can quickly adjust 2-stage/3-stage and charging parameters (as shown in the table above)
· Built-in CAN Bus communication interface for remote setting of charging curves and monitoring charger status
· 4 preset charging curves can be fine-tuned through the panel DIP S.W
· Charging current can be adjusted 50~100% through VR on the panel (only in intelligent voltage detection mode)
· Automatic power reduction for charging during overheating
· Adopt low-noise temperature-controlled fan
· External NTC temperature compensation to prevent rapid battery degradation
· Multiple intelligent protection: Short circuit/Overvoltage/Over Temperature/Low Battery/Battery Reverse Connection
· Suitable for lead-acid and lithium batteries
· Optional carry handle available for purchase (Order No.: Carry Handle)
· Certified by CB, UL, DEKRA, CE, and UKCA
· 3 years warranty

APPLICATION

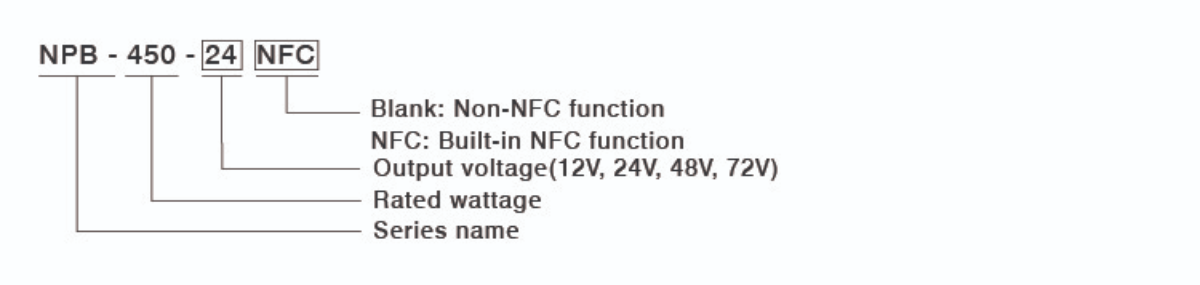

ORDER INFORMATION
