MEAN WELL has been a pioneering force in railway telematics for numerous years, earning widespread industry acclaim for its 8500W encapsulated module, enclosed, and DIN rail offerings (specific details outlined in the table below). In response to the growing need for a broader voltage input spectrum, we are thrilled to introduce our newly developed RQB60W12 series of encapsulated modules, featuring a 1/4 brick design with a 60W capacity and an ultra-wide voltage input range of 12:1 (14160Vdc).

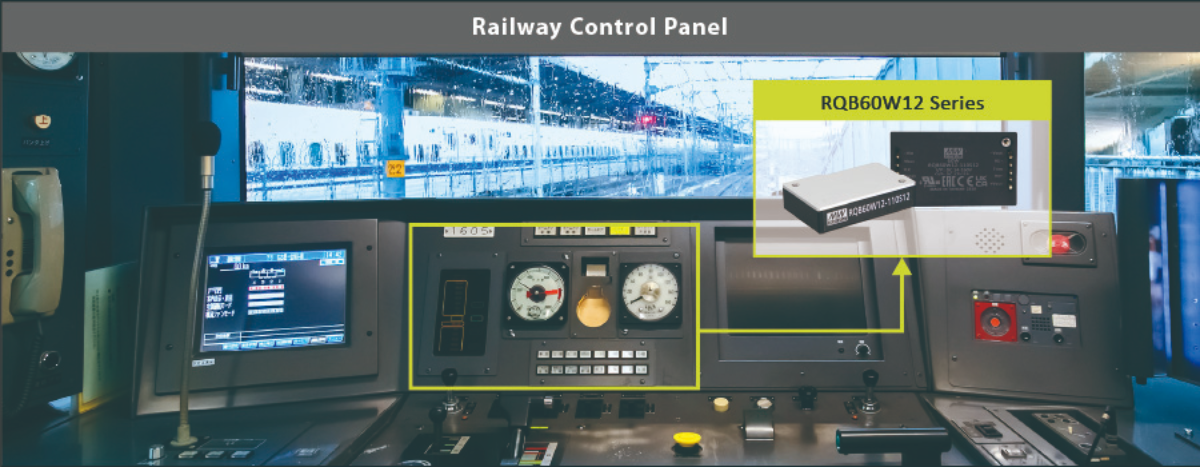

Main features: 14~160Vdc ultra-wide voltage input can cover the mainstream nominal voltages of global railway systems (24/36/48/72/96/110Vdc), operate under extreme environments of -40~+90℃, an external capacitor can be added to ensure the hold-up time would last for 10~30 ms while the DC input is temporarily unstable, 2KVac/3KVdc high isolation withstand voltage, complete protections, etc. It is very suitable for industries such as railways, trams, MRTs, buses and information networks, industrial control automation, communication equipment and double-layer isolation requirements, DC UPS systems, battery voltage conversion or voltage stabilization...etc.
