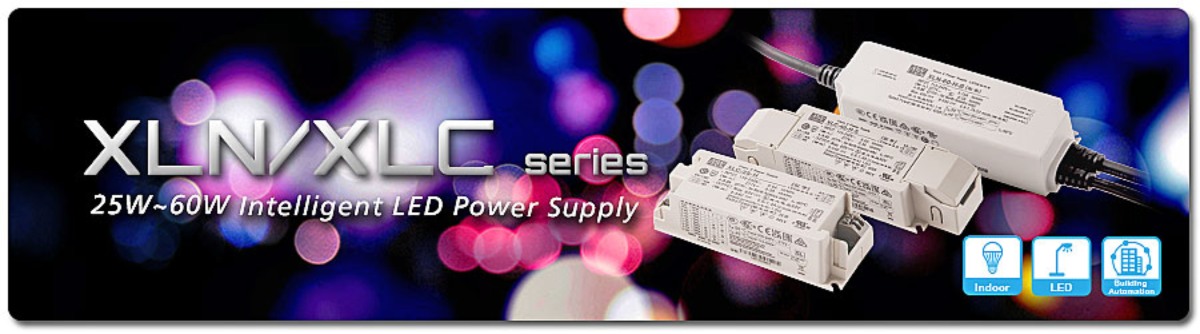

XLN/XLC Series: 25W/40W/60W Intelligent LED Power Supply
Date:2024/03/15

INTRODUCTION
The LED lighting sector has matured, marked by enhancements in lumens per watt and the integration of intelligent dimming technologies. Numerous countries have implemented comprehensive safety and energy efficiency regulations to safeguard user safety and promote energy conservation. MEAN WELL's latest XLN/XLC series of LED power supplies boasts comprehensive safety certifications and advanced dimming capabilities. By partnering with luminaire designs that meet stringent luminous efficiency and safety standards, these power supplies contribute to the global push towards achieving net-zero carbon emissions by 2050 through energy-saving measures.
MEAN WELL persists in providing a diverse selection of standard LED power supplies that incorporate the latest regulations and incorporate innovative output dimming isolation designs. The newly introduced compact XLN-25/40/60W series employs an independent wiring output design, fully encapsulated to ensure IP67 waterproof capability. Meanwhile, the XLC-25/40/60 series offers a terminal-block output design, giving users the choice of independent or integrated mechanisms. Furthermore, a range of current options is available, allowing for easy adjustment of the output current via DIP-Switch or NFC sensing. In terms of dimming capabilities, the power supplies support a variety of wired and wireless dimming interfaces, including 3-in-1, DALI-2, KNX, Casambi, and Matter (IoT). The minimum brightness can be fine-tuned to 0.1%, facilitating seamless integration with various smart control systems. Additional dimming products will be progressively introduced in the future.
With years of expertise in the LED lighting industry, MEAN WELL has recently expanded its offerings to include lighting systems. These systems encompass wired control options such as KNX or DALI-2, enabling system integrators and users to seamlessly integrate products compliant with KNX or DALI standards, thereby minimizing compatibility challenges. Additionally, MEAN WELL provides wireless control solutions for smart home lighting, incorporating the latest Matter (IoT) wireless technology. This technology can be integrated and configured via Apple HomePod speakers and the HomeKit App. For those with smart home solution needs, please reach out to MEAN WELL's sales team for support.

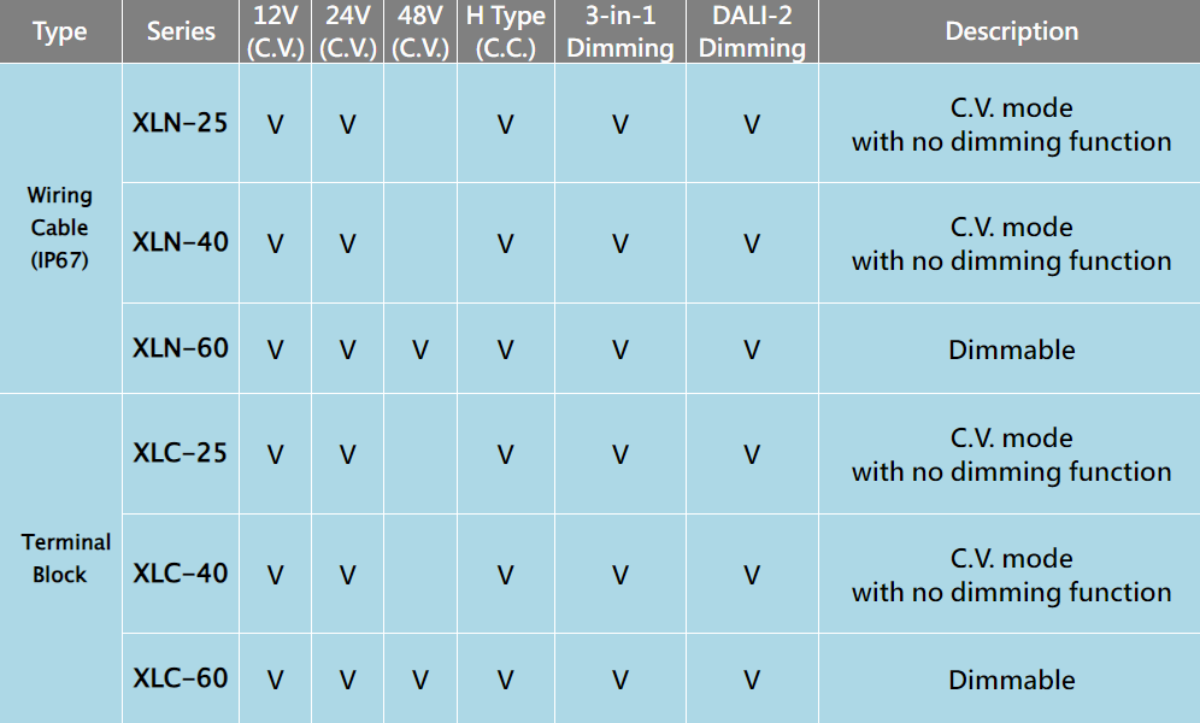

COMPILATION

Note: If you need other dimming functions, such as KNX, Bluetooth, Matter and others, please contact MEAN WELL sales team.
FEATURES
· Constant power design with wide range adjustable current (H type)
· Constant voltage output models available (12V/24V/48V)
· Output current adjusted by NFC sensing
· Full range input 110~305VAC (with PFC function)
· Plastic case with double insulation and Class II design
· Meet UL8750 class 2 / class P power unit
· Compliant with IEEE 1789 and ErP flicker-free standards
· Standby power consumption <0.5W
· Minimum dimming brightness 0.1% (DALI-2 DT6)
· Fully potted design complies with IP67 waterproof and dustproof (XLN series)
· Compliant with emergency lighting (EL) functions
· Dimming function: 3 in 1, DALI-2, KNX, Casambi, Matter
· Output and dimming circuit comply with isolation design
Optional independent or built-in LED power supply (XLC series)
· 5 years warranty and >50,000 hrs lifetime

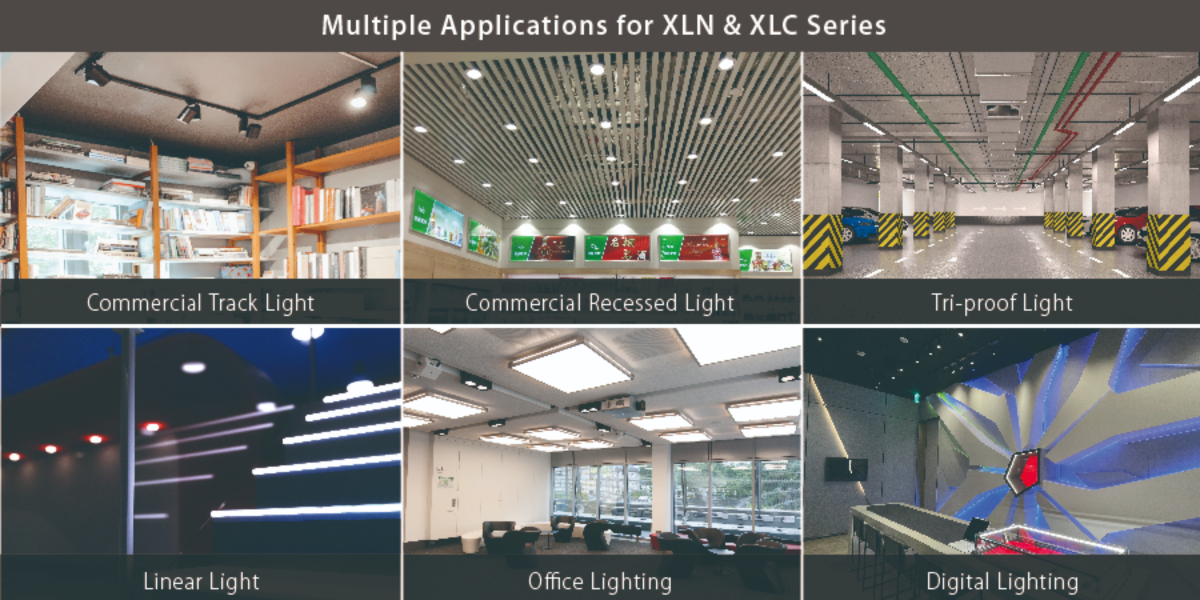

APPLICATION

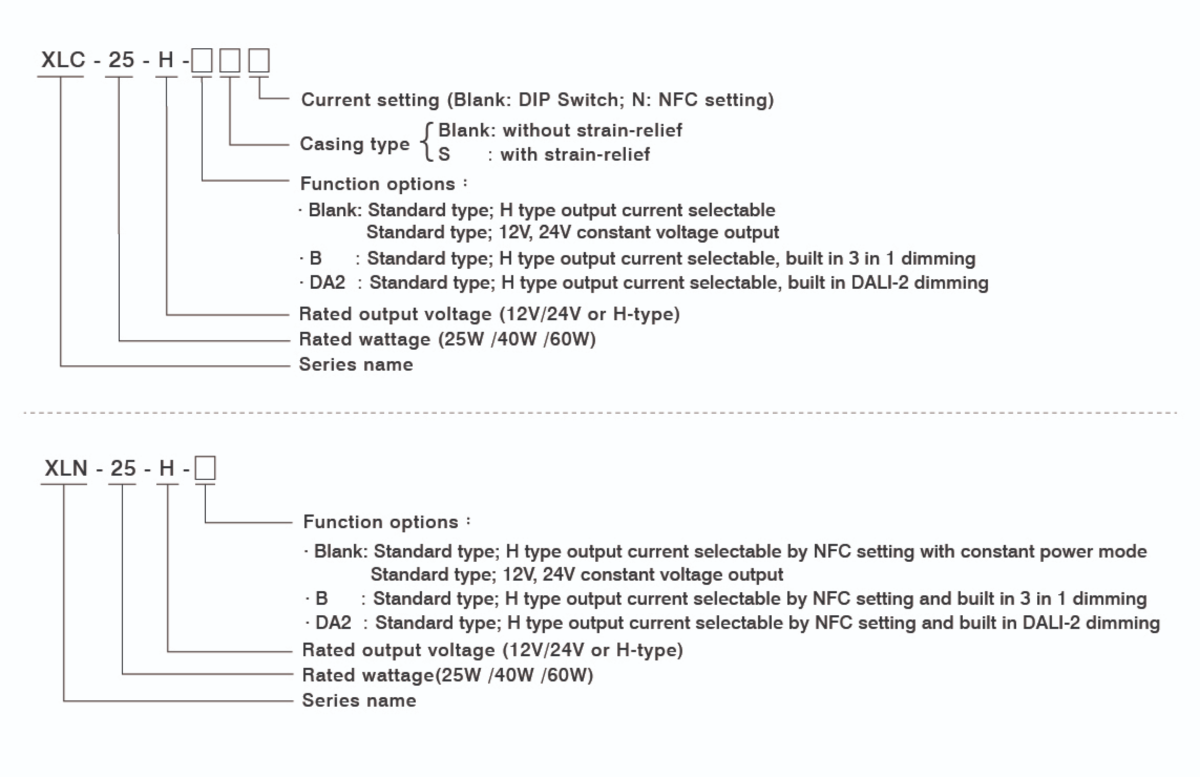

ORDER INFORMATION
