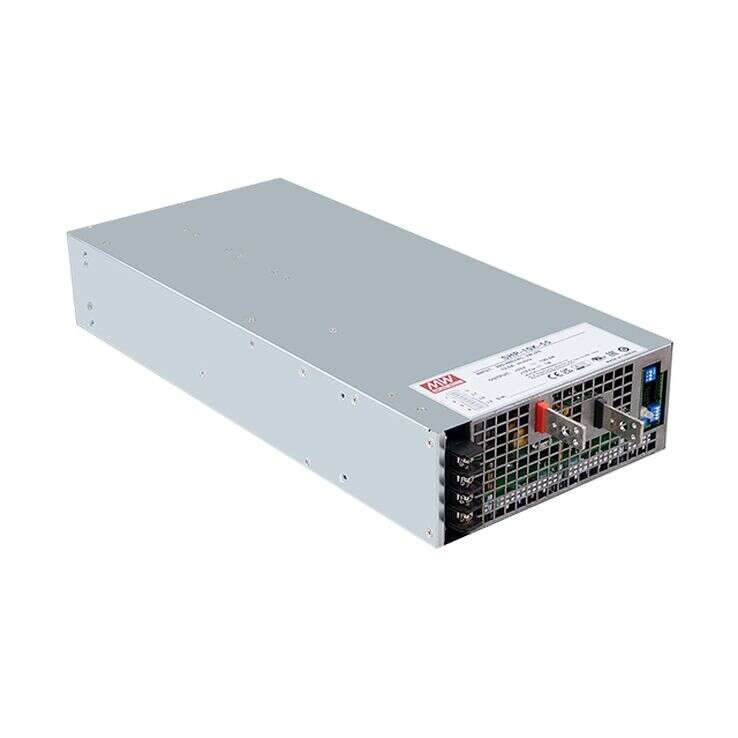

SHP-10K Series
Enclosed Power Supplies 7200–10000W
SHP-10K Series Main Features:
SHP-10K is a 10KW 3 Ø 3W input AC/DC power supply.
Protections: Short circuit/ Overload/ Over voltage/ Over temperature/ Fan fail
Models:
Manufacturer:
Type:
Other features:
SHP-10K-55
SHP-10K-115
SHP-10K-230
SHP-10K-380
MEAN WELL
Enclosed Power Supplies
3ψ 3-wire without neutral /340~530
VAC wide input range
High efficiency up to 97%
Water/forced air cooling selectable
Built-in CANBus/Optional PMBus/MOD
Bus-RTU/RS-485 protocol
Output voltage and constant current
level programmable
Active current sharing up to 4 units (40KW)
Built-in remote ON-OFF control/
Auxiliary power/ Alarm signal
Quote Request
[wpforms id="1665" title="false"]
| SHP-10K-55 | SHP-10K-115 | SHP-10K-230 | SHP-10K-380 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 7200 | 10000 | 10000 | 10000 | ||||||||||||
| Input Voltage | 3ψ3-wire / 340~530VAC | 3ψ3-wire / 340~530VAC | 3ψ3-wire / 340~530VAC | 3ψ3-wire / 340~530VAC | ||||||||||||
| Output Current | 150 | 87 | 43.5 | 26.3 | ||||||||||||
| Output Voltage | 55 | 115 | 230 | 380 | ||||||||||||
| Dimensions | 460x211x83.5 | 460x211x83.5 | 460x211x83.5 | 460x211x83.5 | ||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032 (CISPR32) / EN55011 (CISPR11), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
