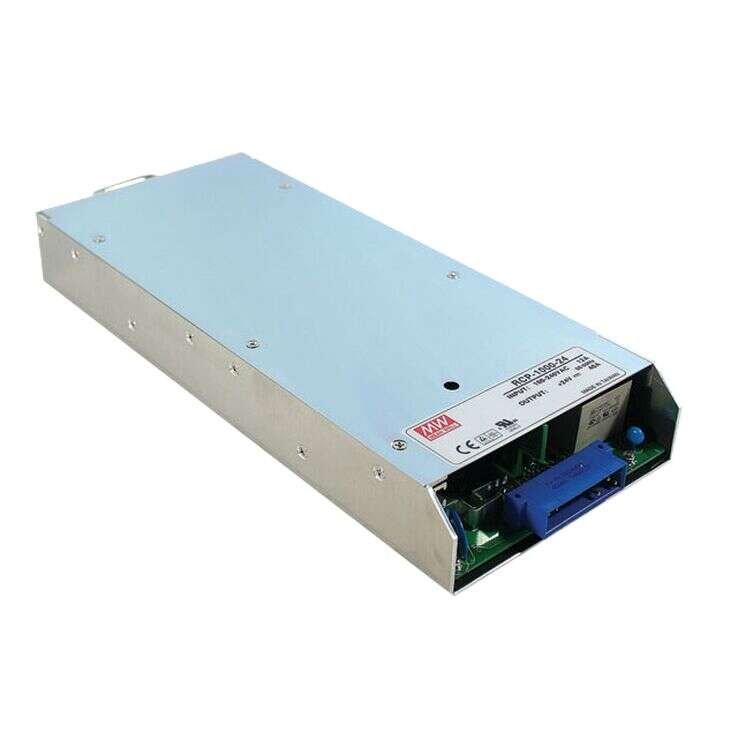

RCP-1000 Series
19 Inch Rack Power Supplies 720–1008W
RCP-1000 Series Main Features:
1U low profile
Active current sharing up to 3000W (3 units) in one 19" rack, 3 racks max. can be operated in parallel (up to 9 units)
Hot swap operation
Models:
Manufacturer:
Type:
Other features:
RCP-1000-12
RCP-1000-24
RCP-1000-48
MEAN WELL
19 Inch Rack Power Supplies
High power density 10.7w/in3
Universal AC/ input / full range
Built-in active PFC function
Built-in 5V/0.3A standby power
Forced air cooling by built in DC fan
Internal OR-ing diode
Remote control for single unit
Built-in remote sense function
AC OK and DC OK signal output
3 years warranty
Quote Request
[wpforms id="1665" title="false"]
| RCP-1000-12 | RCP-1000-24 | RCP-1000-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 720 | 960 | 1008 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 0~60A | 0~40A | 0~21A | |||||||||||||
| Output Voltage | 12 | 24 | 48 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 11.6~12.4V | 23.2~24.8V | 46.3~49.7V | |||||||||||||
| Dimensions | 350.8x483.6x44 | 350.8x483.6x44 | 350.8x483.6x44 | |||||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level, EN61204-3,EN6100-3-2 | |||||||||||||||
