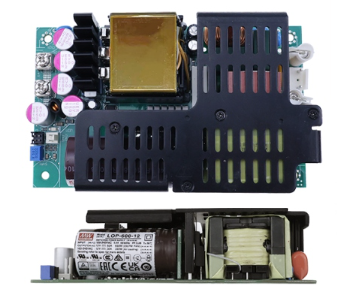

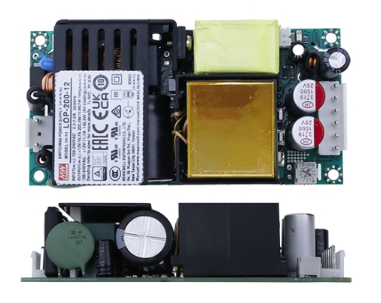

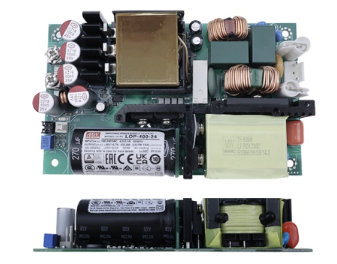

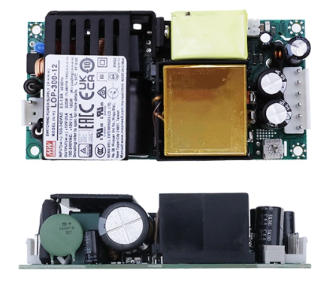

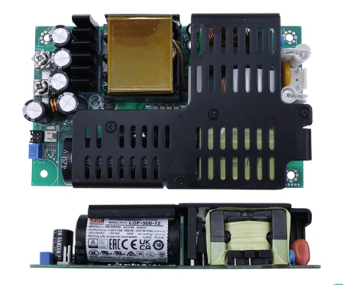

This family offers a range of high reliability, high quality, high efficiency, and safety oriented built in PCB type power supplies with excellent EMC performance. They are suitable for use in Class I or II systems, providing a high performance and cost-effective solution for various electronic instruments and devices. The main features include: low profile design (1.08"~1.31" in height), offers a more comprehensive voltage range of 12V to 54V, increases power to 600W within a 5" x 3" footprint, provides 150% load capacity at 3 seconds, has a wider operating temperature range of -40 to +80°C, complies with OVCIII, 2xMOPP, and BF medical applications. This device simultaneously applies for multiple safety standards in various fields, including 62368-1/60601-1/61558-1/60335-1. It has a wide range of applications and can meet the demands of high power applications, suitable for use in communication, network, medical, industrial control, security, home automation, and others.

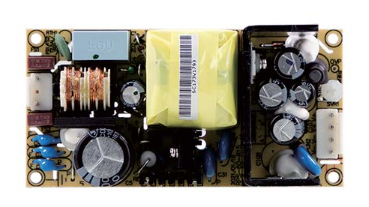

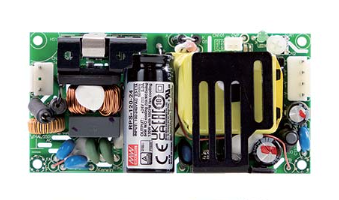

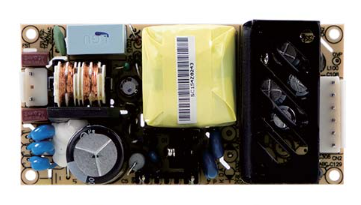

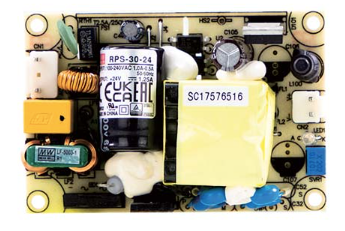

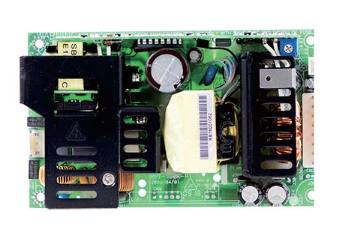

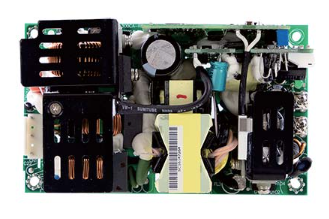

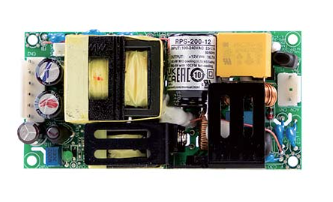

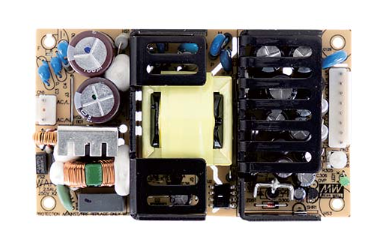

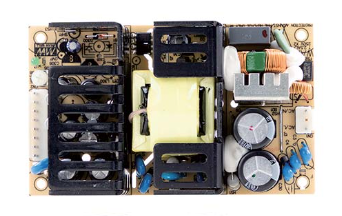

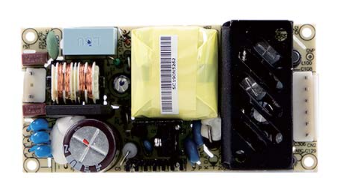

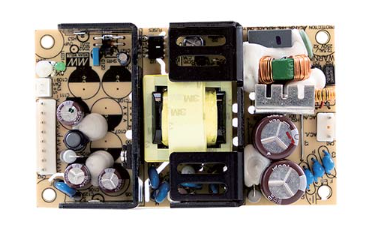

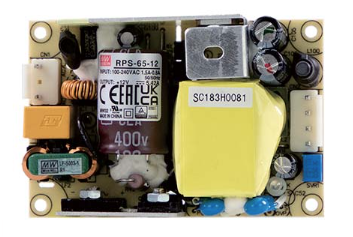

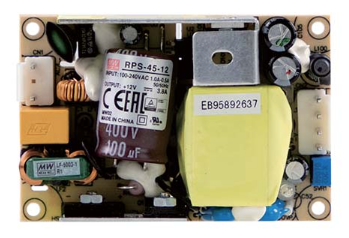

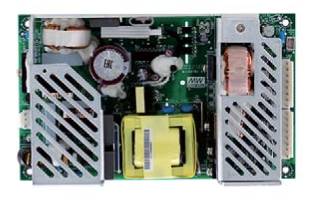

The RPS/D/T family is a series of built-in PCB type medical power supplies. The products include common PCB sizes such as 3"x2", 4"x2", and 5"x3". In addition, MEAN WELL offers single output (RPS series), dual output (RPD series), triple output (RPT series), and quadruple output (MPQ-200) products. Key product features include: ultra-low no load power consumption (depending on model less 0.075~0.75W), 2xMOPP isolation level, suitable for BF type applications. Suitable for dental chair, mobile clinic cart, electrical bed, etc.

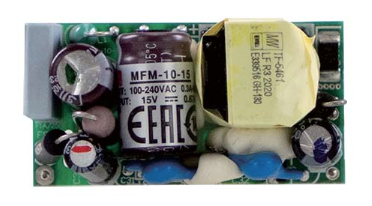

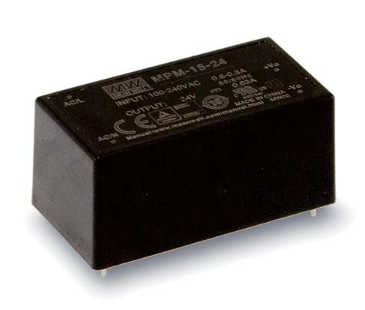

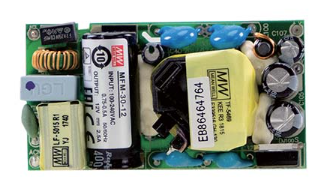

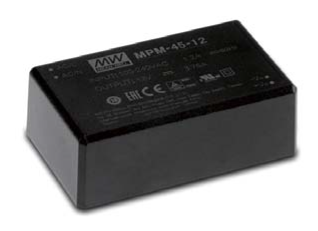

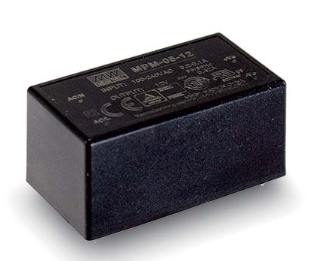

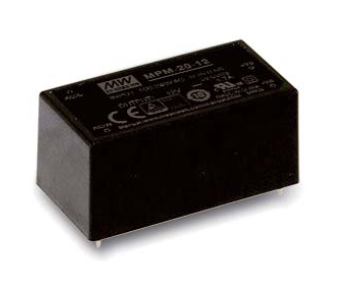

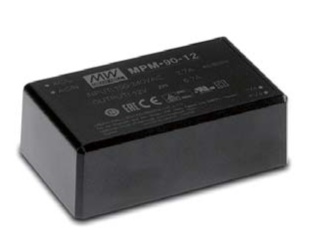

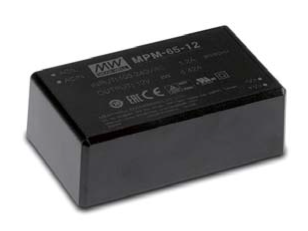

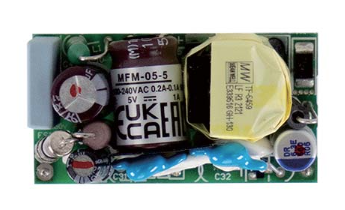

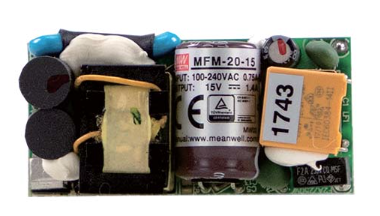

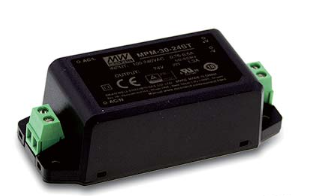

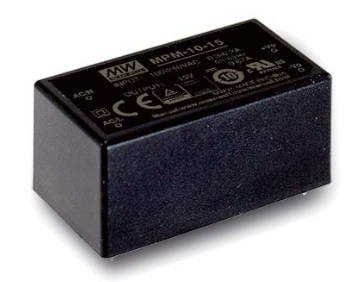

The MPM/MFM product families are on-board medical power modules that can be directly soldered onto the PCB motherboard of different types of medical equipment. The MPM/MFM family comes with 3.3~48V output voltages. Key product features include: ultra-low no-load power consumption (less 0.075W), medical safety approved (2xMOPP), suitability for type BF applications, -30~+85°C ultra-wide operating temperature, 5G anti-vibration capability.

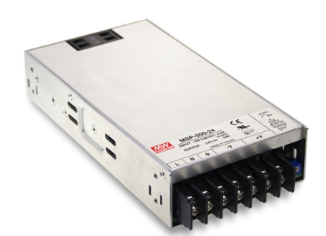

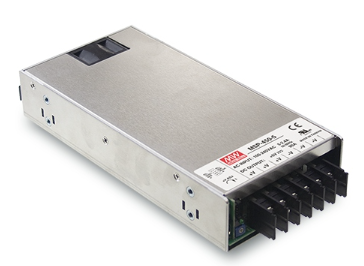

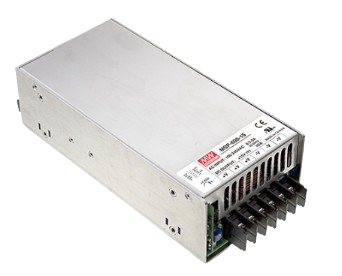

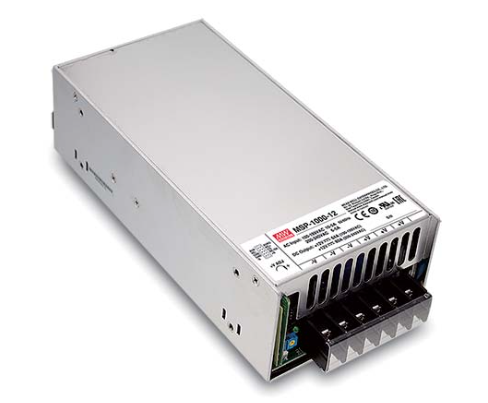

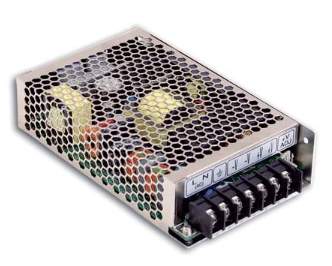

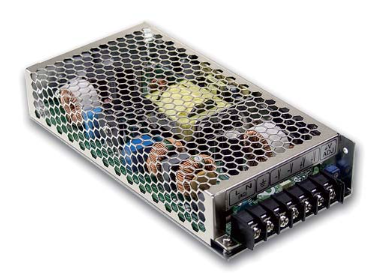

The MSP family is a series of medical grade enclosed type medical power supplies, covering wattages from 100W~1000W, and consist of 3.3~48V outputs for customer selection. Key product features include low no load power consumption less 0.75W, parallel operation capability, 2xMOPP/MOOP isolation level, 5 years warranty, and multiple built-in functions, such as 5V auxiliary power, remote ON/OFF control, DC OK signal. Suitable for medical imaging systems, diagnostic and treatment systems, laboratory analysis systems, etc.

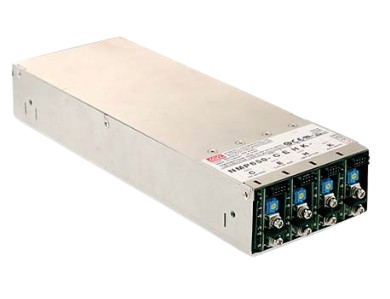

The NMP series is a medical grade modular power supply, specifically designed for systems that require multiple DC voltages and have limitations in space. In order to simplify the design, there are only 5V, 12V, 24V, and 48V four types of output modules that can cover 3V~55V voltage applications. Each module can output up to 240W and has built-in voltage and current adjustment functions. Key product features include: modular design with flexible output configurability, 1U low profile enclosure, compliance to ITE (62368-1) and medical (60601-1) dual safety, 2xMOPP isolation level, 5 years warranty. Suitable for many types of ITE equipment and medium to high power medical systems.

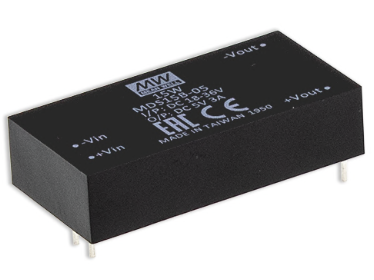

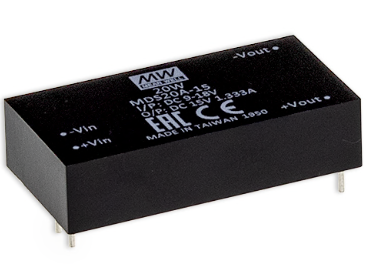

With the launch of medical grade DC-DC converters, an AC-DC + DC-DC complete medical power solution is provided, which may help medical equipment manufacturers and designers to solve design issues related to insufficient isolation levels or excessive leakage current. Key product features include: ultra-low leakage current less 2µA, 6KVDC/4.2KVAC I/O reinforced isolation, compliance to ANSI/AAMI ES60601-1 safety (1xMOPP/2xMOPP).

With the launch of medical grade DC-DC converters, an AC-DC + DC-DC complete medical power solution is provided, which may help medical equipment manufacturers and designers to solve design issues related to insufficient isolation levels or excessive leakage current. Key product features include: ultra-low leakage current less 5µA, compliance to ANSI/AAMI ES60601-1 safety (1xMOPP/2xMOPP).
