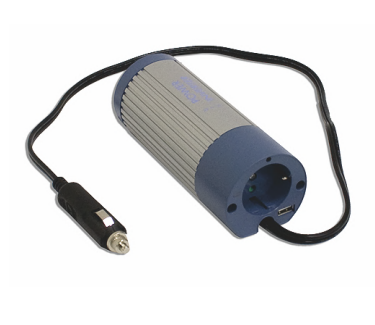

A301/302-100 Series
100W Modified Sine Wave DC-AC Power Inverter

A301/302-100 Series Main Features:
Built-in USB interface
Cooling by free air convection(without fan)
Slim size can fit in with the cup holder on vehicles
Models:
Manufacturer:
Type:
Other features:
A301-100-F3 / A302-100-F3
MEAN WELL
Modified Sine Wave Power Inverter

High efficiency up to 90%

12V or 24V DC input

Input voltage range: -15%~+25%

Output voltage regulation: ±10%

Protections: Input reverse polarity/Bat.
Low shutdown/Over voltage/Over load/
Over temperature/Output short

Topology: Microprocessor

Approvals: E131 EAC/ CE/ UKCA

1 years warranty

Quote Request
A301-100-F3 | A302-100-F3 | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wattage | 100 | 100 | ||||||||||||||
Input Voltage | 10~15Vdc | 21~30Vdc | ||||||||||||||
Output Voltage | 230V | 230V | ||||||||||||||
Output Voltage Options | Single | Single | ||||||||||||||
Dimensions | 65x170mm | 65x170mm | ||||||||||||||
Working Temperature | 0~+30°C | |||||||||||||||
Satety Standards | EAC TP TC 004 approved | |||||||||||||||
EMC Standards | Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020 |
