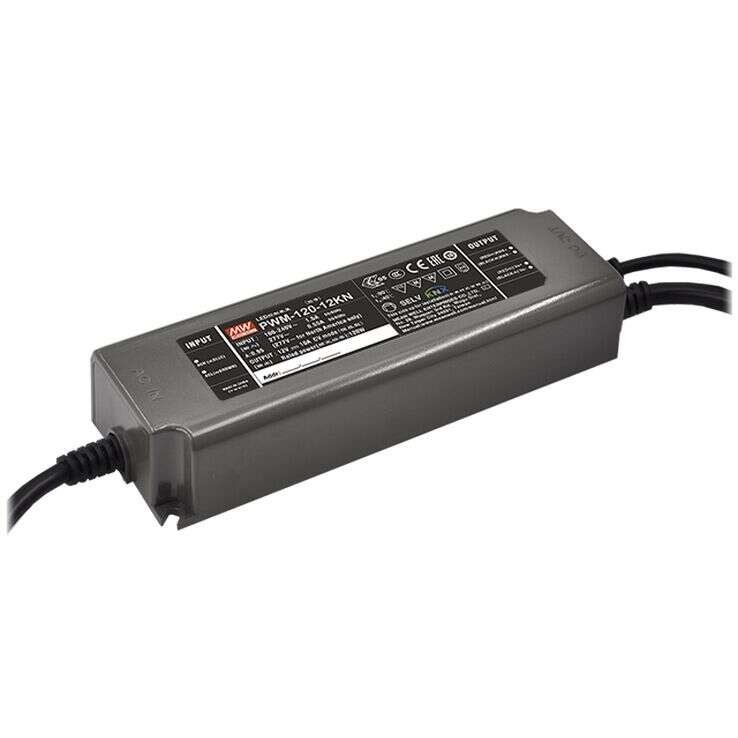

PWM-120-KN Series
120W Constant Voltage PWM Output KNX LED Driver
PWM-120-KN Series Main Features:
Constant Voltage PWM style output with user changeable frequency up to 4KHz design compliant IEEE1789-2015 and EU Ecodesign SVM requirement
Models:
Manufacturer:
Type:
Other features:
PWM-120-12KN / PWM-120-24KN
MEAN WELL
KNX LED Power
Min. dimming level 0.01%
Plastic housing with class II design
Standby power consumption <0.5W
Integrated KNX control protocol
No need KNX-DALI gateway
Typical lifetime>50000 hours
5 years warranty
Quote Request
| PWM-120-12KN | PWM-120-24KN | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 120 | 120 | ||||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||||
| Output Current | 10A | 5A | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| Output Voltage | 12V | 24V | ||||||||||||||
| Dimensions | 191x63x37.5 | 191x63x37.5 | ||||||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14,GB19510.1, BIS IS 15885(Part2/Sec13)(for 12/24 KN), EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1;EAC TP TC 020 | |||||||||||||||
