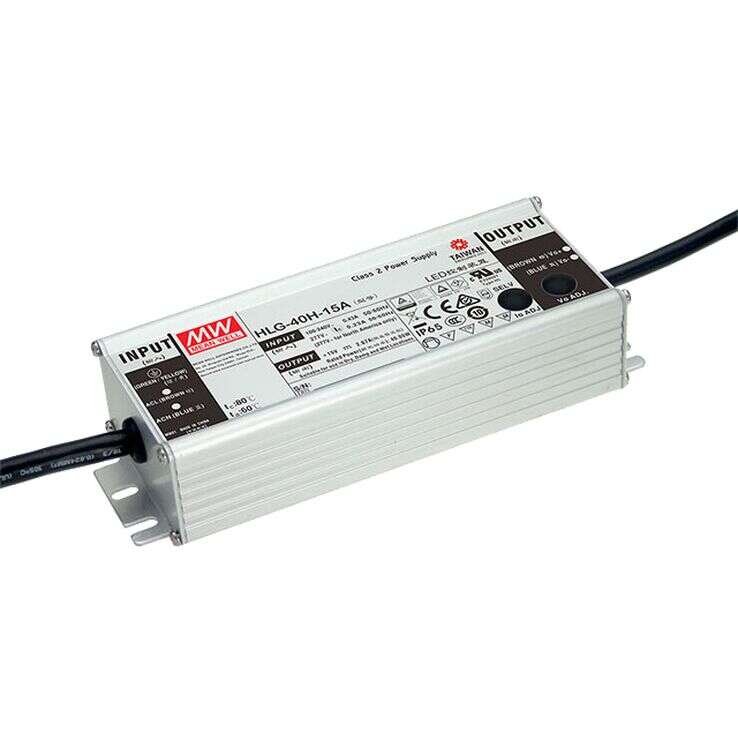

HLG-40H Series
40W Constant Voltage + Constant Current LED Driver
HLG-40H Series Main Features:
Constant Voltage + Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-40H-12A / HLG-40H-15A
HLG-40H-20A / HLG-40H-24A
HLG-40H-30A / HLG-40H-36A
HLG-40H-42A / HLG-40H-48A
HLG-40H-54A
MEAN WELL
Outdoor Constant Voltage LED Driver
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
Function options: output adjustable
via potentiometer; 3 in 1 dimming;
Timer dimming
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-40H-12A | HLG-40H-15A | HLG-40H-20A | HLG-40H-24A | HLG-40H-30A | HLG-40H-36A | HLG-40H-42A | HLG-40H-48A | HLG-40H-54A | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 39.96 | 40.05 | 40 | 40.08 | 40.2 | 40.32 | 40.32 | 40.32 | 40.5 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 171x61.5x36.8 | 171x61.5x36.8 | 171x61.5x36.8 | 171x61.5x36.8 | 171x61.5x36.8 | 171x61.5x36.8 | 171x61.5x36.8 | 171x61.5x36.8 | 171x61.5x36.8 | |||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.0-08 , BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent , GB19510.1,GB19510.14,EAC TP TC 004,KC61347-1,KC61347-2-13(except for AB-type), IP65 or IP67 approved ; J61347-1,J61347-2-13 (except for B,AB and D-type) ; design refer to BS EN/EN60335-1(by request) | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020 | |||||||||||||||
