Home / LED Driver Outdoor With Dimming / XLG-25

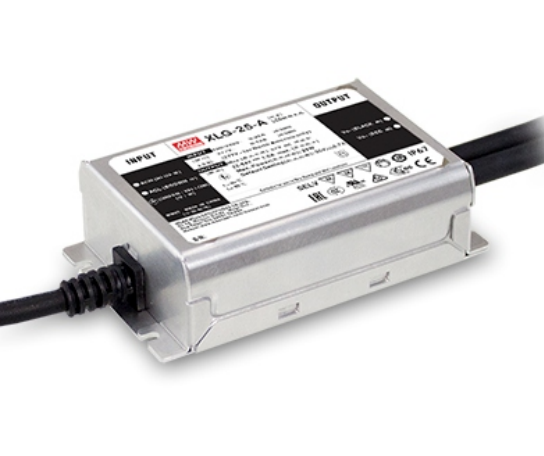

XLG-25 Series

25W Constant Power Mode LED Driver

XLG-25

XLG-25 Series Main Features:

Constant power mode output

Metal housing design with functional ground

Built-in active PFC function

Models:

Manufacturer:

Type:

Other features:

XLG-25-A / XLG-25-AB

MEAN WELL

Outdoor With Dimming LED Driver

Class 2 power unit

No load power consumption <0.5W

IP67 rating for indoor or outdoor installations

Function options: output adjustable
via potentiometer 3 in 1 dimming
function (Dim to off and isolation design)

Typical lifetime>50000 hours

5 years warranty

Quote Request

    XLG-25-AXLG-25-AB
    Wattage2525
    Input Voltage90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC
    Output Voltage57V57V
    Dimensions105x63x30105x63x30
    Working Temperature-40-+85°C
    Satety StandardsUL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB19510.1,GB19510.14, EAC TP TC 004,J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)( for XLG-25I type only); NOM-058-SCFI-2017 approved
    EMC StandardsBS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 , BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
