Home / LED Driver Indoor Constant Current / ELG-75-C

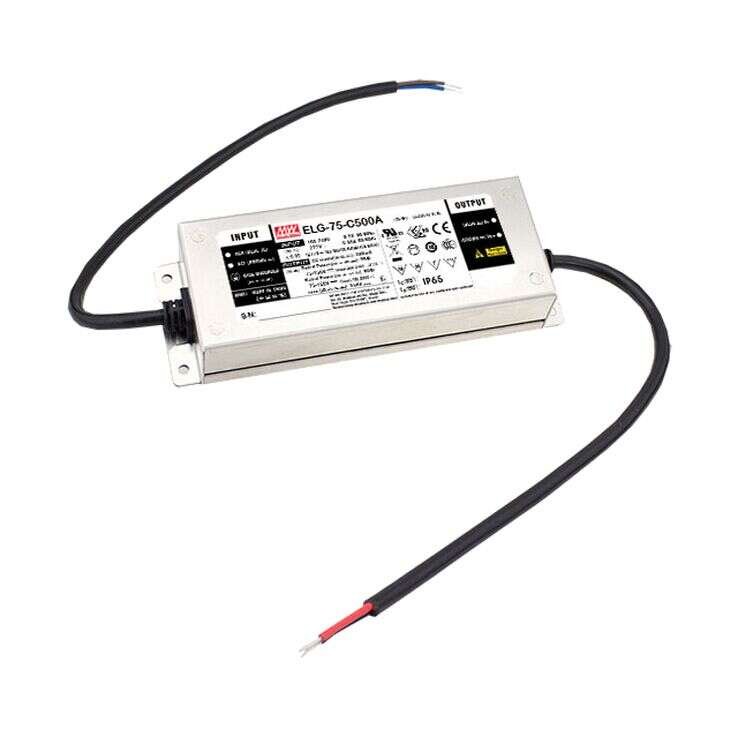

ELG-75-C Series
60~75W Constant Current Mode LED Driver
ELG-75-C Series Main Features:
ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA
Models:
Manufacturer:
Type:
Other features:
ELG-75-C350A-3Y / ELG-75-C500A-3Y
ELG-75-C700A-3Y / ELG-75-C1050A-3Y
ELG-75-C1400A-3Y
MEAN WELL
Indoor Constant Current LED Driver
Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load/Standby power consumption <0.5W
IP67/IP65 rating for indoor or outside installations
Function options: output adjustable via potentiometer
3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime >50000 hours
5 years warranty
Quote Request
| ELG-75-C350A-3Y | ELG-75-C500A-3Y | ELG-75-C700A-3Y | ELG-75-C1050A-3Y | ELG-75-C1400A-3Y | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 74.9 | 75 | 74.9 | 59.85 | 60.2 | |||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | |||||||||||
| Output Voltage | 224V | 158V | 114V | 78V | 61V | |||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 180x63x35.5 | 180x63x35.5 | 180x63x35.5 | 180x63x35.5 | 180x63x35.5 | |||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65 or IP67; GB19510.1, GB19510.14;KC61347-1,KC61347-2-13 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547 | |||||||||||||||
