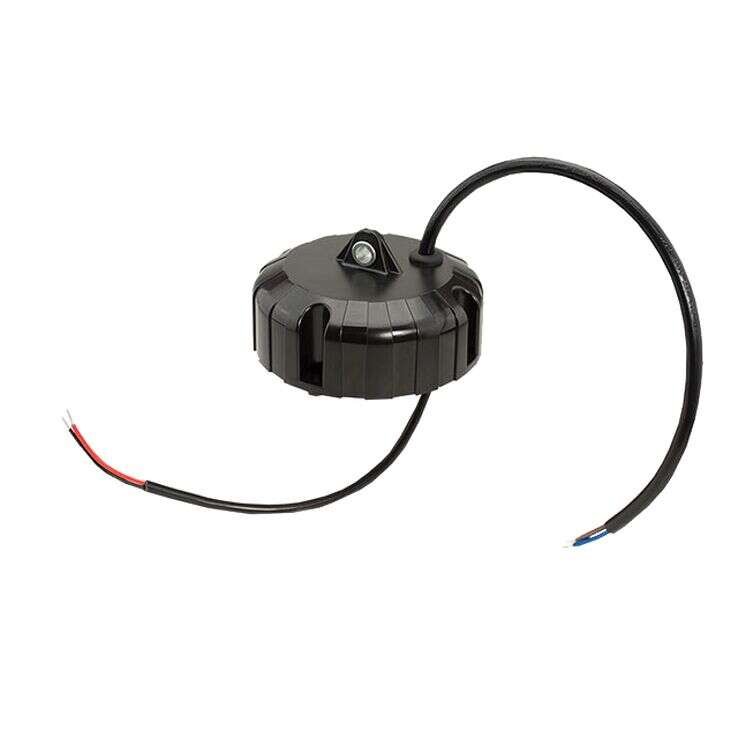

HBG-60 Series
60W Constant Current Mode LED Driver
HBG-60 Series Main Features:
Constant current design
Protections: Short circuit / Over temperature
Models:
Manufacturer:
Type:
Other features:
HBG-60-1050 / HBG-60-1400
HBG-60-2100
MEAN WELL
Outdoor Circular Shape Design LED Driver
Universal AC input / Full range (up to 295VAC)
Built-in active PFC function
High efficiency up to 91%
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Class 2 power unit
No load power consumption <0.5W
5 years warranty
Quote Request
| HBG-60-1050 | HBG-60-1400 | HBG-60-2100 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | |||||||||||||
| Input Voltage | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | |||||||||||||
| Output Voltage | 60 | 50 | 35 | |||||||||||||
| Output Current | 1050mA | 1400mA | 2100mA | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 680~1050mA | 910~1400mA | 1360mA~2100mA | |||||||||||||
| Dimensions | 110x60.5 | 110x60.5 | 110x60.5 | |||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2 Class C (@load≧65%) ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
