Home / LED Driver Outdoor with Dimming / HLG-60H-C

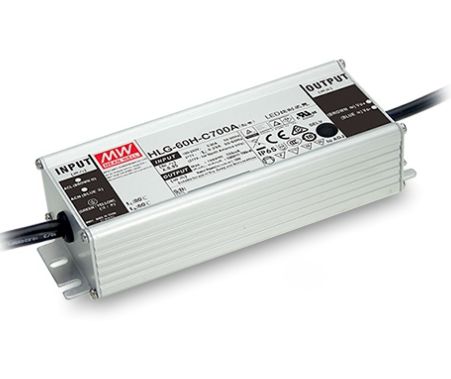

HLG-60H-C Series
70W Constant Current Mode LED Driver
HLG-60H-C Series Main Features:
Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-60H-C350A / HLG-60H-C700A
MEAN WELL
Outdoor with Dimming LED Driver
Metal housing with class I design
Built-in active PFC function
Function options: output adjustable
via potentiometer; 3 in 1 dimming;
Timer dimming
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-60H-C350A | HLG-60H-C700A | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 70 | 70 | ||||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||||
| Output Current | 350mA | 700mA | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| Dimensions | 171x61.5x36.8 | 171x61.5x36.8 | ||||||||||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent, GB19510.1, GB19510.14, EAC TP TC 004, IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020 | |||||||||||||||
