Home / AC-DC Open Frame Type / LOP-200

LOP-200 Series

Open Frame Power Supplies 200W

LOP-200

UHP-200(R) Series Main Features:

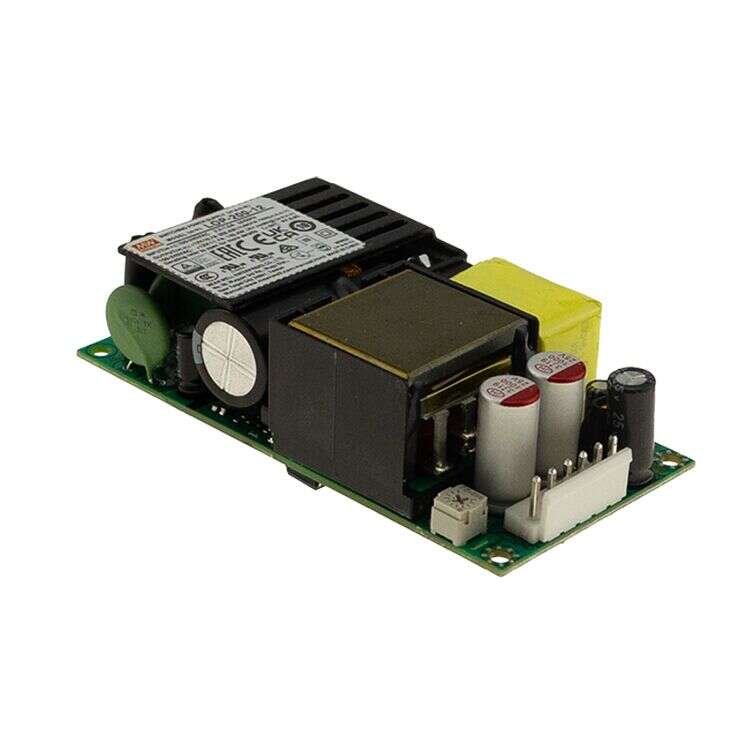

LOP-200 is a 200W highly reliable green PCB type low profile power supply with a high power density on the 4" by 2" footprint

Models:

Manufacturer:

Type:

Other features:

LOP-200-12 / LOP-200-15
LOP-200-18 / LOP-200-24
LOP-200-27 / LOP-200-36
LOP-200-48 / LOP-200-54

MEAN WELL

Open Frame Power Supplies

4" x 2" compact size with low profile (25.4mm)

80~264Vac input with PFC, No load
power consumption<0.5W

150% peak load @3s

140W convection, 200W with FAN 10.98
CFM forced-cooled

Suitable for Class I or Class II installations

-40 ~ +80C wide range operation temperature

Built-in 12V/0.5A for external FAN

Quote Request

    LOP-200-12LOP-200-15LOP-200-18LOP-200-24LOP-200-27LOP-200-36LOP-200-48LOP-200-54
    Wattage200200200200200200200200
    Input Voltage80 ~ 264VAC 113 ~ 370VDC80 ~ 264VAC 113 ~ 370VDC80 ~ 264VAC 113 ~ 370VDC80 ~ 264VAC 113 ~ 370VDC80 ~ 264VAC 113 ~ 370VDC80 ~ 264VAC 113 ~ 370VDC80 ~ 264VAC 113 ~ 370VDC80 ~ 264VAC 113 ~ 370VDC
    Output Current16.7A13.4A11.1A8.4A7.5A5.6A4.2A3.8A
    Output Voltage11.4~12.6V14.3~15.8V17.1~18.9V22.8~25.2V25.6 ~ 29V34.2 ~37.8V45.6 ~50.4V52 ~58V
    Dimensions101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4101.6x50.8x25.4
    Working Temperature-40 ~ +80℃ (Refer to "Derating Curve")
    Satety StandardsCB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved
    EMC StandardsBS EN/EN55032(CISPR32) BS EN/EN55011(CISPR11) BS EN/EN55014(CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3
