Home / AC-DC Open Frame Type / EPS-45

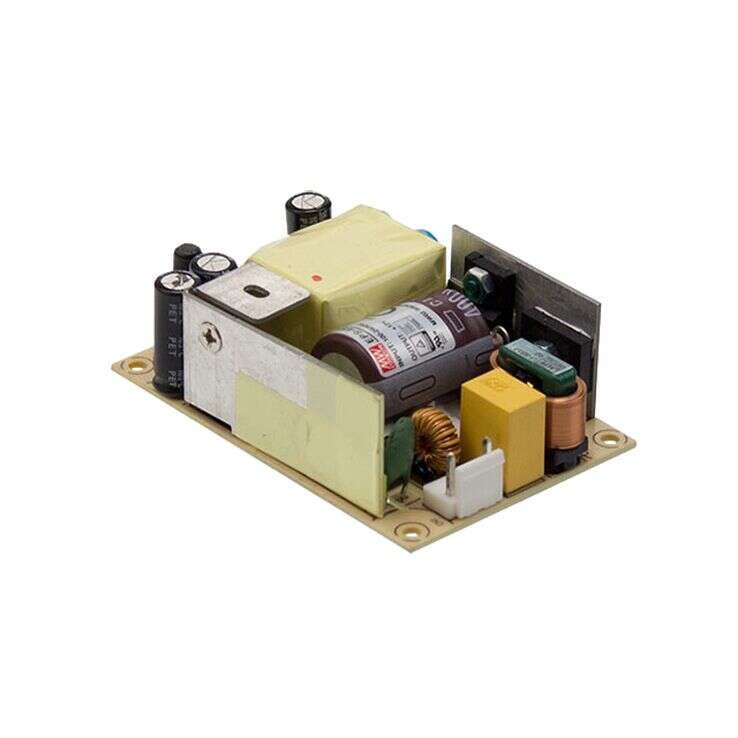

EPS-45 Series
Open Frame Power Supplies 45W
EPS-45 Series Main Features:
No load power consumption<0.3W
1.8" 2.5" compact size
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
EPS-45-3.3 / EPS-45-5
EPS-45-7.5 / EPS-45-12
EPS-45-15 / EPS-45-24
EPS-45-36 / EPS-45-48
EPS-45-3.3-C / EPS-45-5-C
EPS-45-7.5-C / EPS-45-12-C
EPS-45-15-C / EPS-45-24-C
EPS-45-36-C / EPS-45-48-C
MEAN WELL
Open Frame Power Supplies
4"x2"x 0.95 compact size
High efficiency up to 90%
Universal AC input / Full range
Case available
Cooling by free air convection
LED indicator for power on
3 years warranty
Quote Request
| EPS-45-3.3 | EPS-45-5 | EPS-45-7.5 | EPS-45-12 | EPS-45-15 | EPS-45-24 | EPS-45-36 | EPS-45-48 | EPS-45-3.3-C | EPS-45-5-C | EPS-45-7.5-C | EPS-45-12-C | EPS-45-15-C | EPS-45-24-C | EPS-45-36-C | EPS-45-48-C | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC |
| Output Current | 0~8/9A | 0~8/9A | 0~5.4/6A | 0~3.75/4.2A | 0~3/3.3A | 0~1.9~2.1A | 0~1.25/1.4A | 0~1/1.1A | 0~8A | 0~8A | 0~5.4A | 0~3.75A | 0~3A | 0~1.9A | 0~1.25A | 0~1A |
| Output Voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| DC Output Adjustment | 3.1~3.6V | 4.75~5.5V | 7.13~8.25V | 10.8~13.5V | 13.5~16.5V | 21.6~27V | 32.4~39.6V | 43.2~52.8V | 3.1~3.6V | 4.75~5.5V | 7.13~8.25V | 10.8~13.5V | 13.5~16.5V | 21.6~27V | 32.4~39.6V | 43.2~52.8V |
| Dimensions | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 |
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11 | |||||||||||||||
