Home / AC-DC Open Frame Type / MPM-45

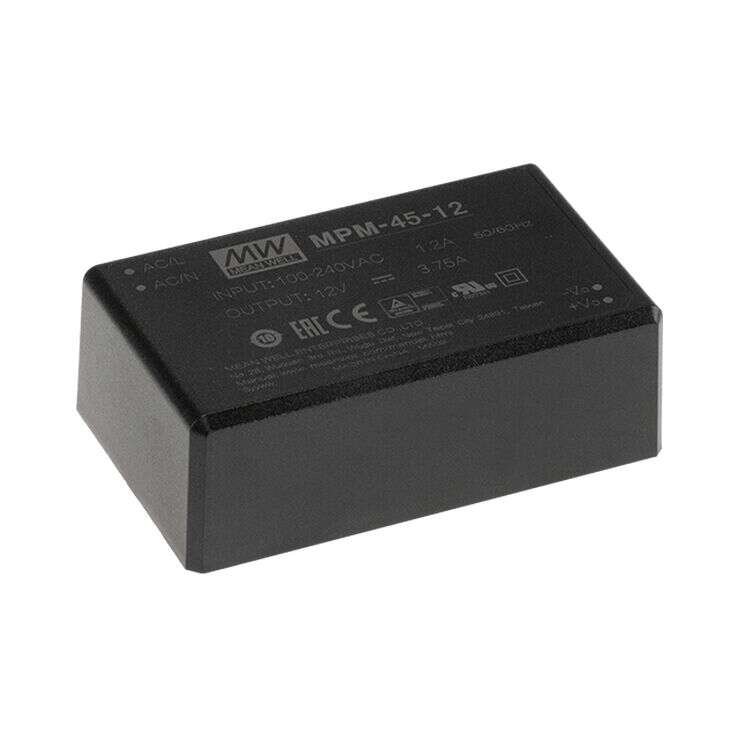

MPM-45 Series
Open Frame Power Supplies 45–50W
MPM-45 Series Main Features:
3.43" x 2.05" compact size
PCB chassis or screw terminal mounting version
Models:
Manufacturer:
Type:
Other features:
MPM-45-5 / MPM-45-12
MPM-45-15 / MPM-45-24
MPM-45-48
MEAN WELL
Open Frame Power Supplies
Wide operating temp. rage -30~80°C
No load power consumption<0.1W
Suitable for BF application with
appropriate system consideration
Extremely low leakage current
EMI Class B without additional components
Protections: Short circuit / Overload /
Over voltage
3 years warranty
Quote Request
| MPM-45-5 | MPM-45-12 | MPM-45-15 | MPM-45-24 | MPM-45-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 50 | 45 | 45 | 45.1 | 45.1 | |||||||||||
| Input Voltage | 80-264VAC, 113-370VDC | 80-264VAC, 113-370VDC | 80-264VAC, 113-370VDC | 80-264VAC, 113-370VDC | 80-264VAC, 113-370VDC | |||||||||||
| Output Current | 10A | 3.75A | 3A | 1.88A | 0.94A | |||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | PCB: 87x52x29.5, Screw terminal: 109x52x33.5 | PCB: 87x52x29.5, Screw terminal: 109x52x33.5 | PCB: 87x52x29.5, Screw terminal: 109x52x33.5 | PCB: 87x52x29.5, Screw terminal: 109x52x33.5 | PCB: 87x52x29.5, Screw terminal: 109x52x33.5 | |||||||||||
| Working Temperature | -30-+80°C | |||||||||||||||
| Satety Standards | IEC60601-1, EN60601-1,UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; EAC TP TC 004,Design refer to EN60335-1(by request), Primary-Secondary: 2xMOPP, I/P-O/P:4KVAC, I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |||||||||||||||
| EMC Standards | EN55011 (CISPR11), EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
