LRS-100 Series

Enclosed Power Supplies 66–110.4W

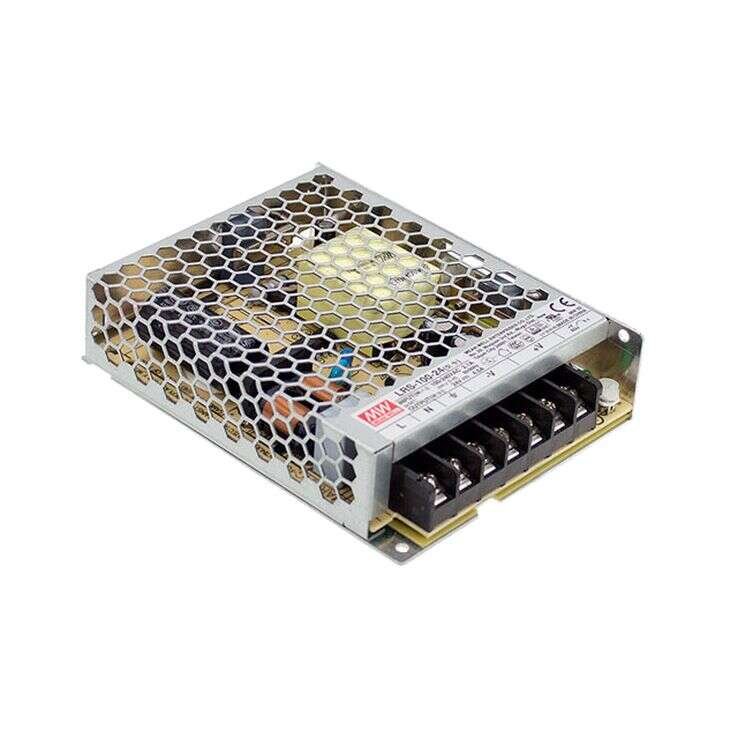

lrs-100

LRS-100 Series Main Features:

No Load power consumption <0.2W

Miniature size and 1U low profile

Protections: Short circuit/ Overload/ Over voltage.

Models:

Manufacturer:

Type:

Other features:

LRS-100-3.3 / LRS-100-5
LRS-100-12 / LRS-100-15
LRS-100-24 /LRS-100-36
LRS-100-48

MEAN WELL

Enclosed Power Supplies

Withstand 300VAC surge input for
5 seconds

Universal AC Input/ Full range

No load power consumption <0.2W

High operating temperature up to 70°C

Cooling by free air convection

Compliance to IEC/EN 60335-1 (PD3)
and IEC/EN61558-1, -2-16 for
household appliances

Operating altitude up to 5000 meters

Withstand 5G vibration test

Quote Request

    LRS-100-3.3LRS-100-5LRS-100-12LRS-100-15LRS-100-24LRS-100-36LRS-100-48
    Wattage6690102105108100.8110.4
    Input Voltage85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC85~264 VAC, 120~373 VDC
    Output Current0~20A0~18A0~8.5A0~7A0~4.5A0~2.8A0~2.3A
    Output Voltage3.351215243648
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment2.97~3.6V4.5~5.5V10.2~13.8V13.5~18V21.6~28.8V32.4~39.6V43.2~52.8V
    Dimensions129 x 97 x 30129 x 97 x 30129 x 97 x 30129 x 97 x 30129 x 97 x 30129 x 97 x 30129 x 97 x 30
    Working Temperature-30-+70°C
    Satety StandardsUL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 Approved
    EMC StandardsEN55022, GB9254 Class B, EN55014, EN61000-3-2,-3, EN61000-4-2,-3,4,5,6,8,11, EN61000-6-2 (EN50082-2), Heavy Industry level, Criteria A
