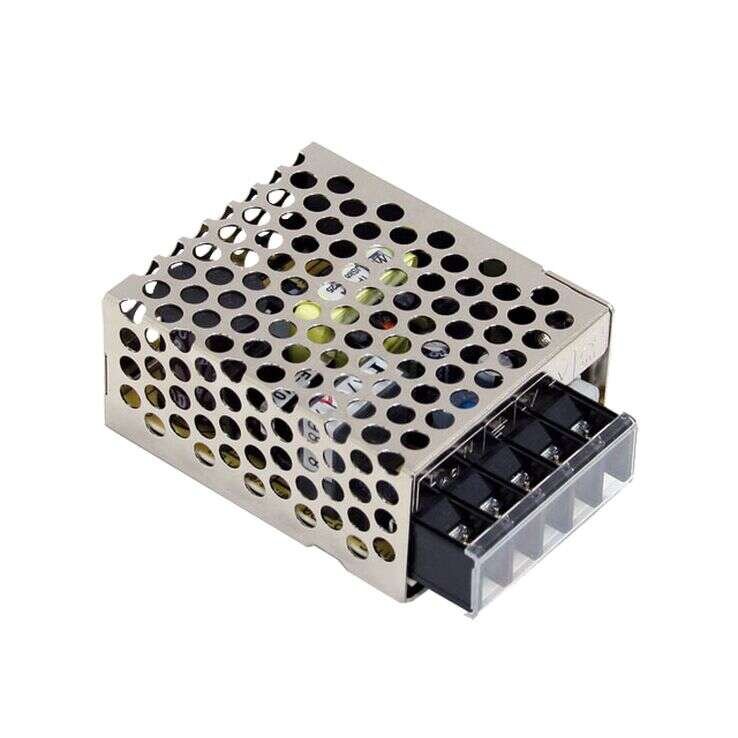

RS-15 Series
Enclosed Power Supplies 10–15W
UHP-200(R) Series Main Features:
No Load power consumption <0.5W
Protections: Short circuit/ Overload/ Over voltage/Over temp
Models:
Manufacturer:
Type:
Other features:
RS-15-3.3 / RS-15-5
RS-15-12 / RS-15-15
RS-15-24 / RS-15-48
MEAN WELL
Enclosed Power Supplies
LED indicator for power on
100% full load burn-in test
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70°C
Withstand 5G vibration test
Uses 105°C long life electrolytic capacitors
Miniature size, high power density
High efficiency, long life and high reliability
3 years warranty
Quote Request
| RS-15-3.3 | RS-15-5 | RS-15-12 | RS-15-15 | RS-15-24 | RS-15-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 9.9 | 15 | 15.6 | 15 | 15 | 15.024 | ||||||||||
| Input Voltage | 85~264 AC, 120~370 DC | 85~264 AC, 120~370 DC | 85~264 AC, 120~370 DC | 85~264 AC, 120~370 DC | 85~264 AC, 120~370 DC | 85~264 AC, 120~370 DC | ||||||||||
| Output Current | 3A | 3A | 1.3A | 1A | 0.625A | 0.313A | ||||||||||
| Output Voltage | 3.3 | 5 | 12 | 15 | 24 | 48 | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 2.9-3.6V | 4.75-5.5V | 10.8-13.2V | 13.5-16.5V | 22-27.6V | 43.2-52.8V | ||||||||||
| Dimensions | 62.5*51*28 | 62.5*51*28 | 62.5*51*28 | 62.5*51*28 | 62.5*51*28 | 62.5*51*28 | ||||||||||
| Working Temperature | -40~+70°C (refer to output derating curve) | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 | |||||||||||||||
