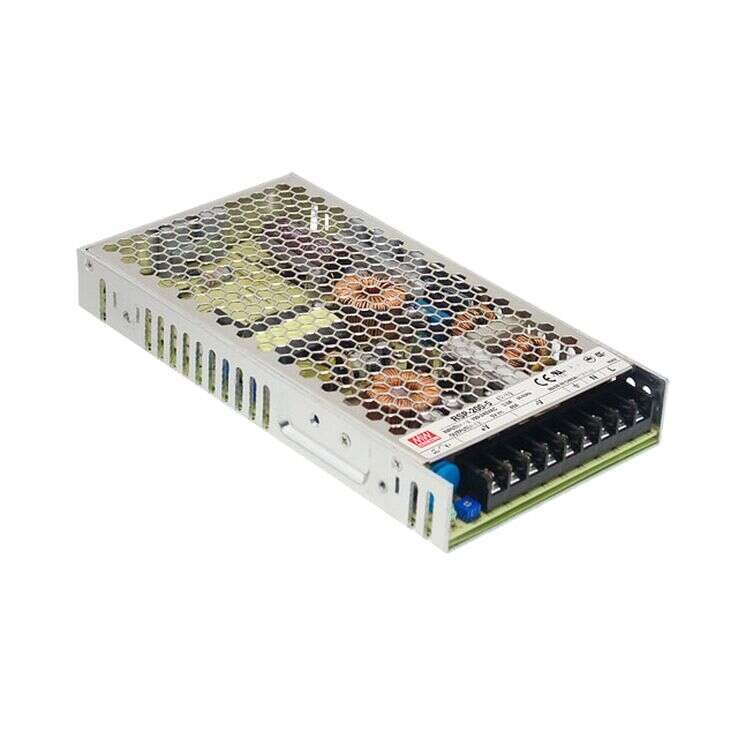

RSP-200 Series
Enclosed Power Supplies 100–200W
RSP-200 Series Main Features:
Universal AC input / Full range
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
RSP-200-2.5 / RSP-200-3.3
RSP-200-4 / RSP-200-5
RSP-200-7.5 / RSP-200-12
RSP-200-13.5 / RSP-200-15
RSP-200-24 / RSP-200-27
RSP-200-36 / RSP-200-48
MEAN WELL
Enclosed Power Supplies
Cooling by free air convection
1U low profile 30mm
Optional conformal coating models (RSP-200- CC)
LED indicator for power on
3 years warranty
Quote Request
| RSP-200-2.5 | RSP-200-3.3 | RSP-200-4 | RSP-200-5 | RSP-200-7.5 | RSP-200-12 | RSP-200-13.5 | RSP-200-15 | RSP-200-24 | RSP-200-27 | RSP-200-36 | RSP-200-48 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 100 | 132 | 160 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||||
| Input Voltage | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | ||||
| Output Current | 0~40A | 0~40A | 0~40A | 0~40A | 0~26.7A | 0~16.7A | 0~14.9A | 0~13.4A | 0~8.4A | 0~7.5A | 0~5.56A | 0~4.2A | ||||
| Output Voltage | 2.5 | 3.3 | 4.2 | 5 | 7.5 | 12 | 13.5 | 2.5 | 24 | 27 | 36 | 48 | ||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | ||||
| Dimensions | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | ||||
| Working Temperature | -30 ~ +70°C (Refer to "Derating Curve") | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | |||||||||||||||
