Home / AC-DC Enclosed Type / RD-35

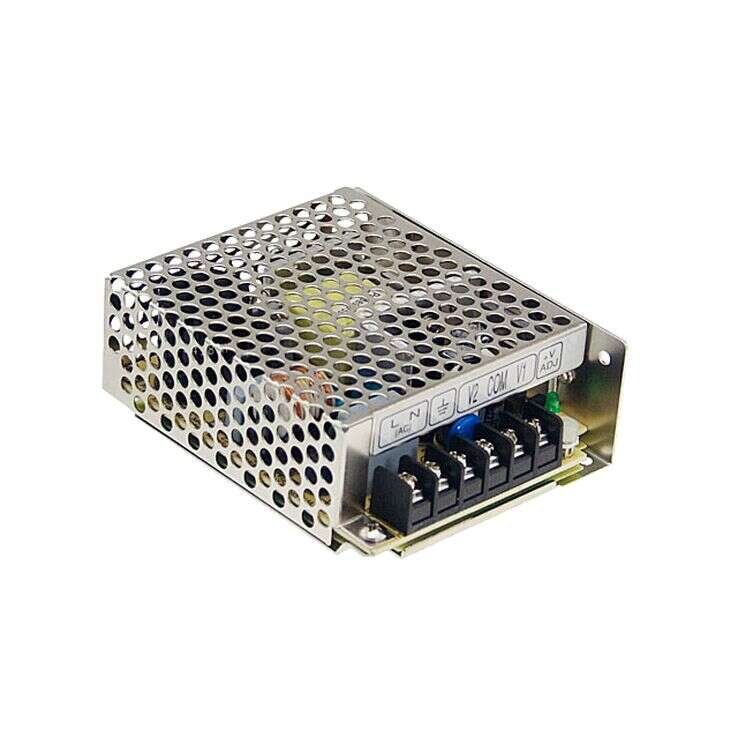

RD-35 Series
Enclosed Power Supplies 35–35.1W
RD-35 Series Main Features:
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
RD-35A / RD-35B
RD-3513
MEAN WELL
Enclosed Power Supplies
LED indicator for power on
100% full load burn-in test
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70°C
Withstand 5G vibration test
Uses 105°C long life electrolytic capacitors
Miniature size, high power density
High efficiency, long life and high reliability
3 years warranty
Quote Request
| RD-35A | RD-35B | RD-3513 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 35 | 35 | 35.1 | |||||||||||||
| Input Voltage | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | |||||||||||||
| Output Current | 0~4A, 0~1A | 0~4A, 0~1.3A | 0~2A, 0~1.5A | |||||||||||||
| Output Voltage | 5, 12 | 5, 24 | 13.5, -13.5 | |||||||||||||
| Output Voltage Option | Dual | Dual | Dual | |||||||||||||
| DC Output Adjustment | CH1: 4.75~5.5V | CH1: 4.75~5.5V | CH1: 11.5~15.5V | |||||||||||||
| Dimensions | 99 x 82 x 35 | 99 x 82 x 35 | 99 x 82 x 35 | |||||||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2 | |||||||||||||||
