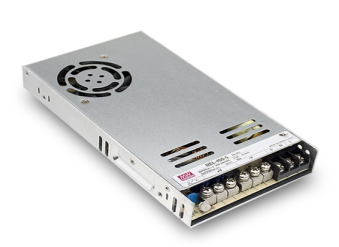

NEL-400 Series
400W Single Output Switching Power Supply
NEL-400 Series Main Features:
Forced air cooling by built-in DC fan
Low profile: 30mm
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
NEL-400-2.8 / NEL-400-4.2
NEL-400-5
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
AC input 180-264VAC
Leakage current <1mA
-30-+70°C working temperature
Conformal coated
LOw cost, high reliability
LED Indicator for power on
100% full load burn-in test
2 years warranty
Quote Request
| NEL-400-2.8 | NEL-400-4.2 | NEL-400-5 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 224 | 336 | 400 | |||||||||||||
| Input Voltage | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | |||||||||||||
| Output Current | 80A | 80A | 80A | |||||||||||||
| Output Voltage | 2.8 | 4.2 | 5 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 2.5-3V | 3.6-4.4V | 4.5-5.5V | |||||||||||||
| Dimensions | 215*115*30 | 215*115*30 | 215*115*30 | |||||||||||||
| Working Temperature | -20-+60°C | |||||||||||||||
| Satety Standards | UL 62368-1,EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to EAC TP TC 020 | |||||||||||||||
