Home / AC-DC Enclosed Type / LRS-200

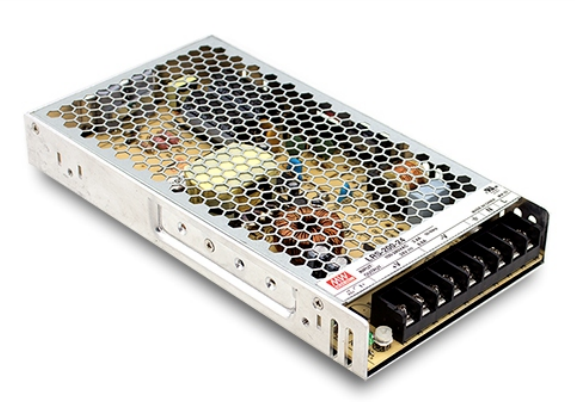

LRS-200 Series
Enclosed Power Supplies 132–211.2W
LRS-200 Series Main Features:
Cooling by free air convection
1U low profile
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
LRS-200-3.3 / LRS-200-4.2
LRS-200-5 / LRS-200-12
LRS-200-15 / LRS-200-24
LRS-200-36 / LRS-200-48
MEAN WELL
Enclosed Power Supplies
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Withstand 5G vibration test
LED indicator for power on
Operating altitude up to 5000 meter
No load power consumption<0.75W
100% full load burn-in test
3 years warranty
Quote Request
| LRS-200-3.3 | LRS-200-4.2 | LRS-200-5 | LRS-200-12 | LRS-200-15 | LRS-200-24 | LRS-200-36 | LRS-200-48 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 132 | 168 | 200 | 204 | 210 | 211.2 | 212.4 | 211.2 | ||||||||
| Input Voltage | 90~132VAC/180~264VAC 240~370VDC | 90~132VAC/180~264VAC 240~370VDC | 90~132VAC/180~264VAC 240~370VDC | 90~132VAC/180~264VAC 240~370VDC | 90~132VAC/180~264VAC 240~370VDC | 90~132VAC/180~264VAC 240~370VDC | 90~132VAC/180~264VAC 240~370VDC | 90~132VAC/180~264VAC 240~370VDC | ||||||||
| Output Current | 0-40A | 0-40A | 0-40A | 0-17A | 0-14A | 0-8.8A | 0-5.9A | 0-4.4A | ||||||||
| Output Voltage | 3.3 | 4.2 | 5 | 12 | 15 | 24 | 36 | 48 | ||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 2.97-3.6V | 3.6-4.4V | 4.5-5.5V | 10.2-13.8V | 13.5-18V | 21.6-28.8V | 32.4-39.6V | 43.2-52.8V | ||||||||
| Dimensions | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | 215x 115x 30 | ||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | IEC/UL 62368-1, BSMI CNS15598-1,EAC TP TC 004, KC62368-1(for LRS-200-12/24 only),GB 4943.1, BIS IS13252(Part1):2010/IEC 60950-1: 2005(NOTE 11) ,BS EN/EN61558-1, BS EN61558-2-16 Designed by AS/NZS 61558.1/2.16, AS/NZS 62368.1,BS EN/EN62368-1 | |||||||||||||||
| EMC Standards | Compliance to BSMI CNS15936, EAC TP TC 020,KS C 9832, KS C 9835(for LRS-200-12/24 only) | |||||||||||||||
