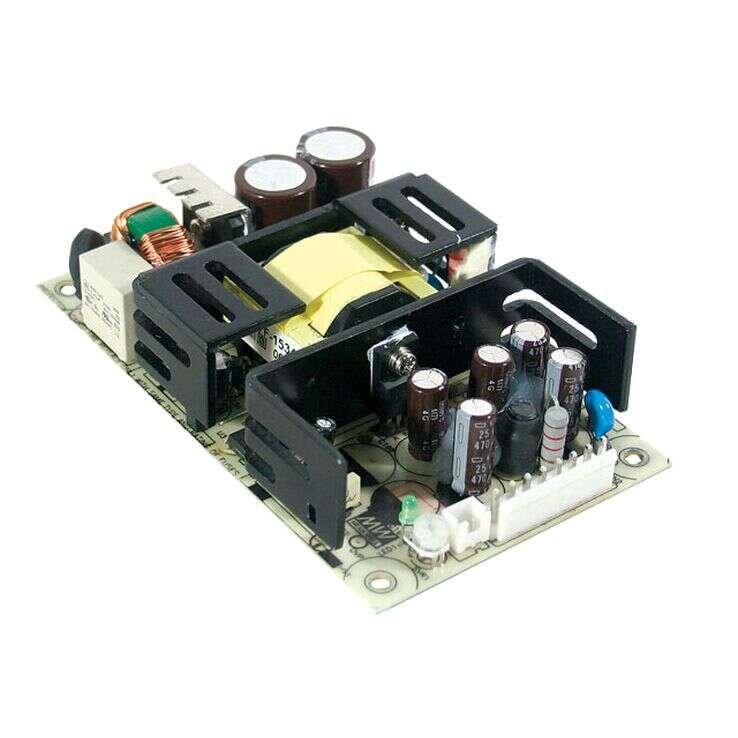

RPS-75 Series
Medical Grade Power Supplies 75W
RPS-75 Series Main Features:
No load power consumption <0.75W
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
RPS-75-3.3 / RPS-75-5
RPS-75-12 / RPS-75-15
RPS-75-24 / RPS-75-36
RPS-75-48
MEAN WELL
Open Frame Power Supplies
Universal AC input / Full range
Fixed switching frequency at 45kHz
Medical safety approved
Low leakage current <200uA
Free air convection with 23.5CFM forced air
Suitable for medical and IT applications
3 years warranty
Quote Request
| RPS-75-3.3 | RPS-75-5 | RPS-75-12 | RPS-75-15 | RPS-75-24 | RPS-75-36 | RPS-75-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||
| Output Current | 0~20A | 0~18.7A | 0~8.3A | 0~6.7A | 0~4.2A | 0~2.8A | 0~2.1A | |||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | 36V | 48V | |||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |||||||||
| Dimensions | 127x76.2x31 | 127x76.2x31 | 127x76.2x31 | 127x76.2x31 | 127x76.2x31 | 127x76.2x31 | 127x76.2x31 | |||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | UL60601-1, TUV EN60601-1 approved | |||||||||||||||
| EMC Standards | EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level | |||||||||||||||
