Home / LED Driver Outdoor Constant Current / HVGC-65

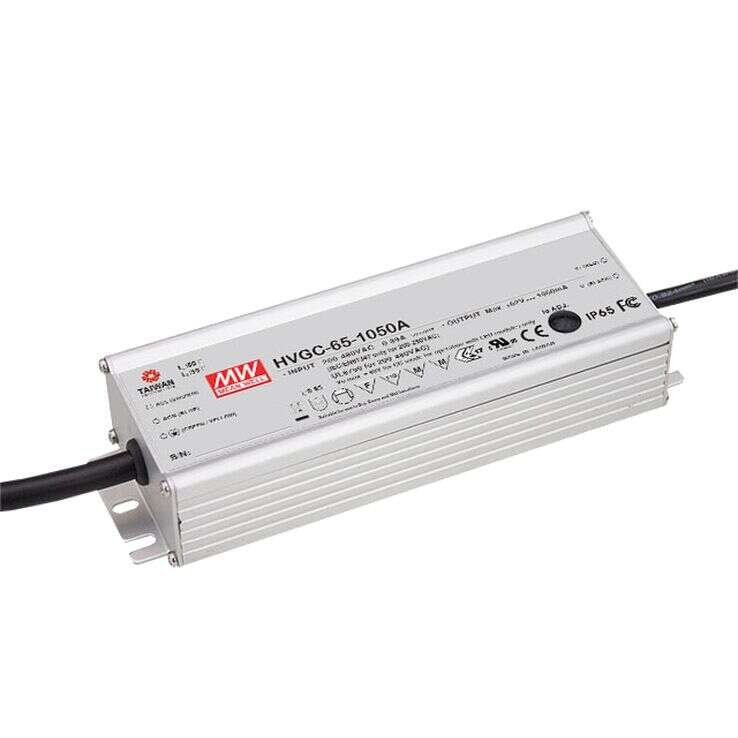

HVGC-65 Series
65W Constant Current Mode LED Driver
HVG-65 Series Main Features:
Wide input range 180~528VAC
IP67 / IP65 rating for indoor or outdoor installations
Models:
Manufacturer:
Type:
Other features:
HVGC-65-350A / HVGC-65-500A
HVGC-65-700A / HVGC-65-1050A
MEAN WELL
Outdoor Constant Current LED Driver
Metal housing with Class I design
Built-in active PFC function
Function options: output adjustable
via potentiometer; 3 in 1 dimming;Timer dimming
Typical lifetime>50000 hours
5 years warranty
Quote Request
| HVGC-65-350A | HVGC-65-500A | HVGC-65-700A | HVGC-65-1050A | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 65.1 | 65 | 65.1 | 65.1 | ||||||||||||
| Input Voltage | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | ||||||||||||
| Output Current | 350mA | 500mA | 700mA | 1050mA | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Dimensions | 189x61.5x36.8 | 189x61.5x36.8 | 189x61.5x36.8 | 189x61.5x36.8 | ||||||||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, independent, EAC TP TC 004, IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020 | |||||||||||||||
