A301/302-150 Series

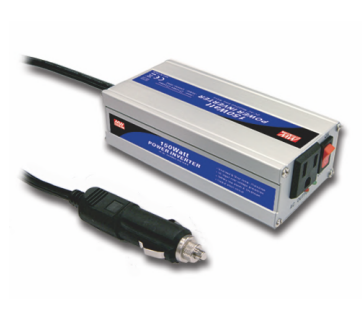

150W Modified Sine Wave DC-AC Power Inverter

A302

A301/302-150 Series Main Features:

12V or 24V DC input

Power ON-OFF switch

Models:

Manufacturer:

Type:

Other features:

A301-150-B2 / A302-150-B2

MEAN WELL

Modified Sine Wave Power Inverter

Input voltage range: -15%~+25%

Output voltage regulation: ±10%

Protections: Input reverse polarity/Bat.
Low shutdown/Over voltage/Over load/
Over temperature/Output short

Topology: Microprocessor

Approvals: E131 EAC/ CE/ UKCA

1 years warranty

Quote Request

    A301-150-B2A302-150-B2
    Wattage150150
    Input Voltage10~15Vdc21~30Vdc
    Output Voltage110V110V
    Output Voltage OptionsSingleSingle
    Dimensions122x73x45mm122x73x45mm
    Working Temperature0~+30°C
    Satety StandardsEAC TP TC 004 approved
    EMC StandardsCompliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
