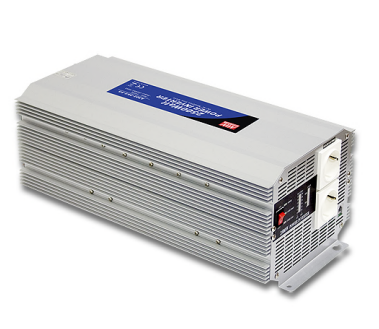

A301/302-2K5 Series
2500W Modified Sine Wave DC-AC Power Inverter
A301/302-2K5 Series Main Features:
Power ON-OFF switch
Cooling fan ON-OFF control
ON/OFF remote control
Models:
Manufacturer:
Type:
Other features:
A301-2K5-B2 / A301-2K5-F3
A302-2K5-B2 / A302-2K5-F3
MEAN WELL
Modified Sine Wave DC-AC Power Inverter
12V or 24V DC input
Input voltage range: -15%~+25%
Output voltage regulation: ±10%
Protections: Input reverse polarity/Bat.
Low shutdown/Over voltage/Over load/
Over temperature/Output short
Approvals: E131 EAC/ CE/ UKCA
1 years warranty
Quote Request
| A301-2K5-B2 | A301-2K5-F3 | A302-2K5-B2 | A302-2K5-F3 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 2500 | 2500 | 2500 | 2500 | ||||||||||||
| Input Voltage | 10~15Vdc | 10~15Vdc | 21~30Vdc | 21~30Vdc | ||||||||||||
| Output Voltage | 110V | 230V | 110V | 230V | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Dimensions | 430x210x159mm | 430x210x159mm | 430x210x159mm | 430x210x159mm | ||||||||||||
| Working Temperature | 0~+25°C | |||||||||||||||
| Satety Standards | EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55014-1, EAC TP TC 020 | |||||||||||||||
