A301/302-300 Series

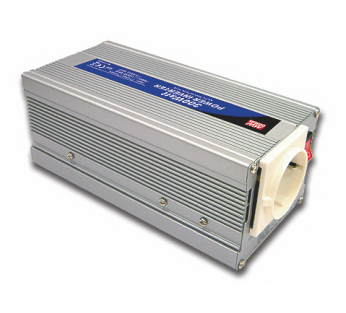

300W Modified Sine Wave DC-AC Power Inverter
A301/302-300 Series Main Features:
Power ON-OFF switch
Cooling fan ON-OFF control
Models:
Manufacturer:
Type:
Other features:
A301-300-B2 / A301-300-F3
A302-300-B2 / A302-300-F3
MEAN WELL
Modified Sine Wave DC-AC Power Inverter
12V or 24V DC input
Input voltage range: -15%~+25%
Output voltage regulation: ±10%
Protections: Input reverse polarity/Bat.
Low shutdown/Over voltage/Over load/
Over temperature/Output short
Topology: Microprocessor
Approvals: E131 EAC/ CE/ UKCA
1 years warranty
Quote Request
| A301-300-B2 | A301-300-F3 | A302-300-B2 | A302-300-F3 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 300 | 300 | ||||||||||||||
| Input Voltage | 10~15Vdc | 21~30Vdc | ||||||||||||||
| Output Voltage | 110V | 230V | 110V | 230V | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Dimensions | 165x88x74mm | 165x88x74mm | 165x88x74mm | 165x88x74mm | ||||||||||||
| Working Temperature | 0~+30°C | |||||||||||||||
| Satety Standards | EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020 | |||||||||||||||
