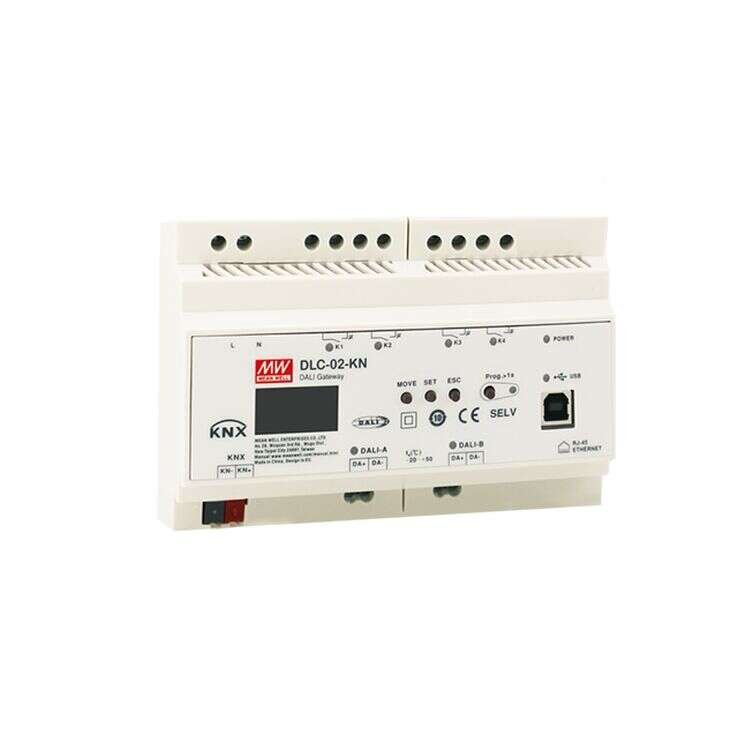

DLC-02-KN Series
KNX-DALI Gateway
DLC-02-KN Series Main Features:
KNX to DALI gateway
2 independent DALI Bus channels with built in DALI power supply
Connect up to 2x64 DALI ECGs
Program via ETS5/ETS6 software
Models:
Manufacturer:
Type:
Other features:
DLC-02-KN
MEAN WELL
KNX Gateway
Max 16 scenes and groups setting per channel
OLED display, LED indicators and buttons
for local operation
Easy installation and configuration
via ETS(database and DCA)
Up to 16 Sequence(32 Steps per Sequence) and 16 Timer
Support DALI-2 devices with part 202/206/207/208/209
5 years warranty
Quote Request
| DLC-02-KN | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Power | 7.68W | |||||||||||||||
| Input Voltage | 100-305VAC, 140-430VDC | |||||||||||||||
| Dimensions | 144x90x58.3mm | |||||||||||||||
| Working Temperature | -25~+45°C | |||||||||||||||
| Satety Standards | Compliance to BS EN/EN63044-1, BS EN/EN63044-3 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN63044-5-2, BS EN/EN63044-5-3(BS EN/EN50491-5-2/3) | |||||||||||||||
