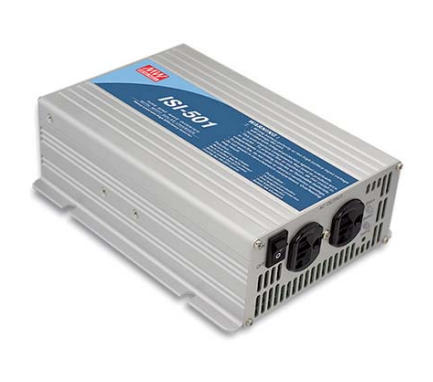

ISI-501 Series
500W True Sine Wave DC-AC Inverter with MPPT Solar Charger
ISI-501 Series Main Features:
True sine wave output(THD<3%)
High surge power up to 1000W
High efficiency up to 88%
High frequency design
Models:
Manufacturer:
Type:
Other features:
ISI-501-112 / ISI-501-124
ISI-501-148 / ISI-501-212
ISI-501-224 / ISI-501-248
MEAN WELL
Solar Inverter
Thermostatically controlled cooling fan
Built-in 500W MPPT solar charger, MPPT efficiency: 98%
Protections: Input polarity Reverse / Bat.
low alarm / Bat. low shutdown / Over
voltage / Over temp. / Output short /
Over-load / Output short / AC circuit breaker
Built-in remote ON-OFF control
Built-in battery low relay contact
LED indicator for operation status and battery capacity
3 years warranty
Quote Request
| ISI-501-112 | ISI-501-124 | ISI-501-148 | ISI-501-212 | ISI-501-224 | ISI-501-248 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 450 | 500 | 500 | 450 | 500 | 500 | ||||||||||
| Input Voltage | 10.5~15Vdc | 21~30Vdc | 42~60Vdc | 10.5~15Vdc | 21~30Vdc | 42~60Vdc | ||||||||||
| Output Voltage | 100/110/115/120 VAC selectable by setting button S.W | 100/110/115/120 VAC selectable by setting button S.W | 100/110/115/120 VAC selectable by setting button S.W | 200/220/230/240 VAC selectable by setting button S.W | 200/220/230/240 VAC selectable by setting button S.W | 200/220/230/240 VAC selectable by setting button S.W | ||||||||||
| Dimensions | 205x158x67mm | 205x158x67mm | 205x158x67mm | 205x158x67mm | 205x158x67mm | 205x158x67mm | ||||||||||
| Working Temperature | -20~+40°C | |||||||||||||||
| Satety Standards | IEC62368-1 CB, EAC TP TC 004 approved; Meet BS EN/EN62368-1 | |||||||||||||||
| EMC Standards | Compliance to FCC part 15 class B, EAC TP TC 020 | Compliance to EN55032 class B, BS EN/ EAC TP TC 020 | ||||||||||||||
