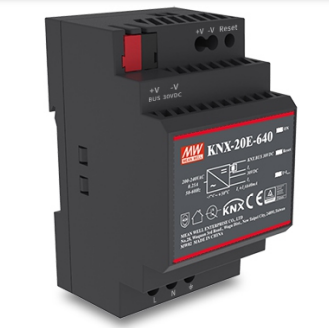

KNX-20E-640 Series
640mA KNX Power Supply
KNX-20E-640 Series Main Features:
EIB/KNX power supply with integrated choke
Compact size with 3SU(52.5mm) width
Safety extra low voltage(SELV)
No load power consumption <0.5W
Models:
Manufacturer:
Type:
Other features:
KNX-20E-640
MEAN WELL
KNX Power
Protections: Short circuit / Overload(short-circuit-proof) / Over voltage
Cooling by free air convection
Isolation Class I
LED indicator for normal operation, bus
reset and bus overload
Installed on DIN rail TS-35/7.5 or 15
Over voltage category III
100% full load burn-in test
3 years warranty
Quote Request
| KNX-20E-640 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 19.2 | |||||||||||||||
| Input Voltage | 180-264VAC | |||||||||||||||
| Output Current | 640mA | |||||||||||||||
| Output Voltage | 30V | |||||||||||||||
| Output Voltage Options | Single | |||||||||||||||
| Dimensions | 52.5x90x54.5mm | |||||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | BS EN/EN61558-1,BS EN/EN61558-2-16;BS EN/EN50491-3, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN50491-5-2,-5-3;BS EN/EN61000-3-2,-3-3, EAC TP TC 020 | |||||||||||||||
