Home / KNX LED Power / LCM-25KN

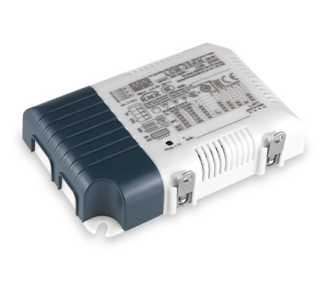

LCM-25KN Series
25W Multiple-Stage Constant Current Mode LED Driver
LCM-25KN Series Main Features:
Constant Current mode output with multiple levels selectable by dip switch
KNX/EIB protocol
Flicker free design
Models:
Manufacturer:
Type:
Other features:
LCM-25KN
MEAN WELL
KNX LED Power
Support emergency lighting(EL)
Integrated constant light output
Integrated KNX push button interface
Synchronization up to 10 units
Functions: Manual dim, operation
hours, power consumption feed
-back, log/linear curve selection...etc
3 years warranty
Quote Request
| LCM-25KN | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 18.9W | |||||||||||||||
| Input Voltage | 180~277VAC 220~380VDC | |||||||||||||||
| Output Voltage | 59V | |||||||||||||||
| Dimensions | 105x68x23 | |||||||||||||||
| Working Temperature | -30-+85°C | |||||||||||||||
| Satety Standards | CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14, GB19510.1, BIS IS15885(Part2/Sec13), EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020 | |||||||||||||||
