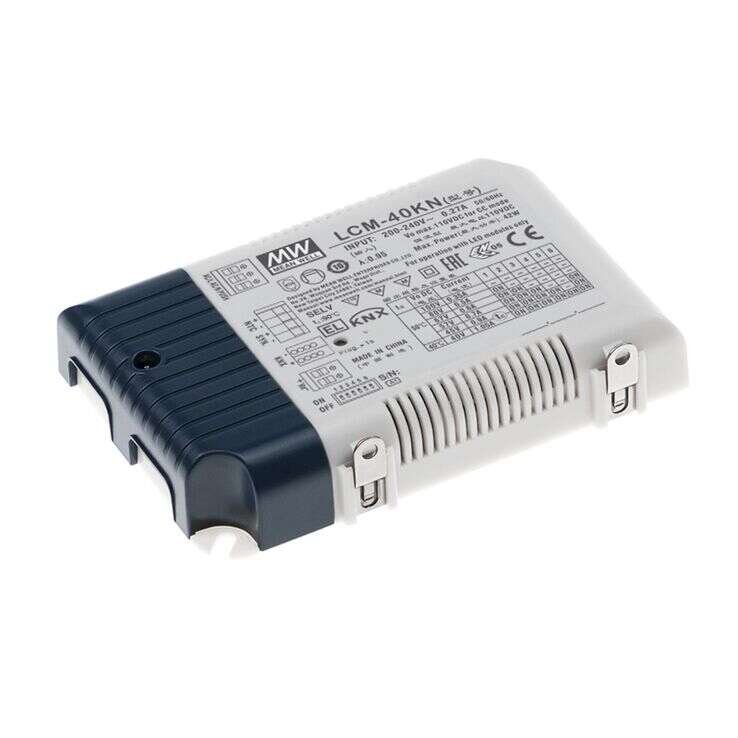

LCM-40KN Series
40W Multiple-Stage Constant Current Mode LED Driver
LCM-40KN Series Main Features:
Constant Current mode output with multiple levels selectable by dip switch
KNX/EIB protocol
Flicker free design
Models:
Manufacturer:
Type:
Other features:
LCM-40KN
MEAN WELL
KNX LED Power
Support emergency lighting(EL)
Integrated constant light output
Integrated KNX push button interface
Synchronization up to 10 units
Functions: Manual dim, operation
hours, power consumption feed
-back, log/linear curve selection...etc
3 years warranty
Quote Request
| LCM-40KN | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 42W | |||||||||||||||
| Input Voltage | 180~295VAC 220~392VDC | |||||||||||||||
| Output Voltage | 110V | |||||||||||||||
| Dimensions | 123.5x81.5x23 | |||||||||||||||
| Working Temperature | -30-+90°C | |||||||||||||||
| Satety Standards | ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, BIS IS15885(Part2/Sec13), EAC TP TC 004 approved, GB19510.14 and GB19510.1(by request) ; According to BS EN/EN50172, BS EN/EN 60598-2-22, BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac) | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load≧40%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1 EAC TP TC 020 | |||||||||||||||
