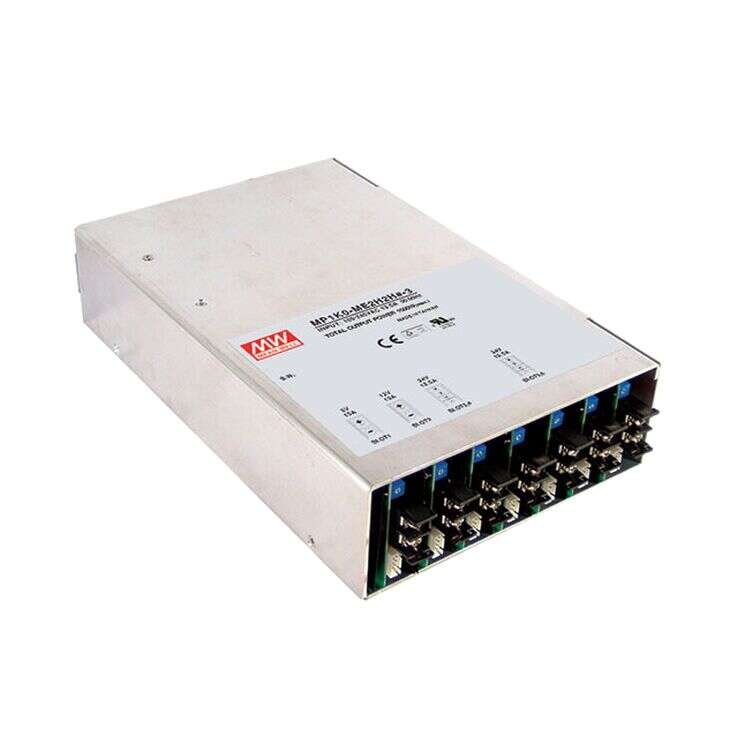

MP-1K0 Series
Modular Power Supplies 1000W
MP-1K0 Series Main Features:
Switching power supplies with modular design that consists of 2 stages; Front end PFC and output modules
Models:
Manufacturer:
Type:
Other features:
MP-1K0
MEAN WELL
Configurable Power Supplies
Universal input voltage
Uses ZVS technology to reduce
power dissipation and improve efficiency
Large range of output configura
-tions available
Remote control on each module
Remote sense on MS-75, 150 & 300 modules
Built in active PFC, PF>0.95
Built in parallel function on MS-300
Fan alarm function
Quote Request
| MP-1K0 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1000 | |||||||||||||||
| Input Voltage | 85~264VAC 120~370VDC | |||||||||||||||
| Dimensions | 278x177.8x63.5 | |||||||||||||||
| Working Temperature | -20-+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1, EN60601-1 approved | |||||||||||||||
| EMC Standards | Complies to EN55022 Class B, EN6100-3, -2,3, EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-1, EN61204-3 Light Industrial Level, Criteria A | |||||||||||||||
