Home / DC-DC Onboard Type / NID-35

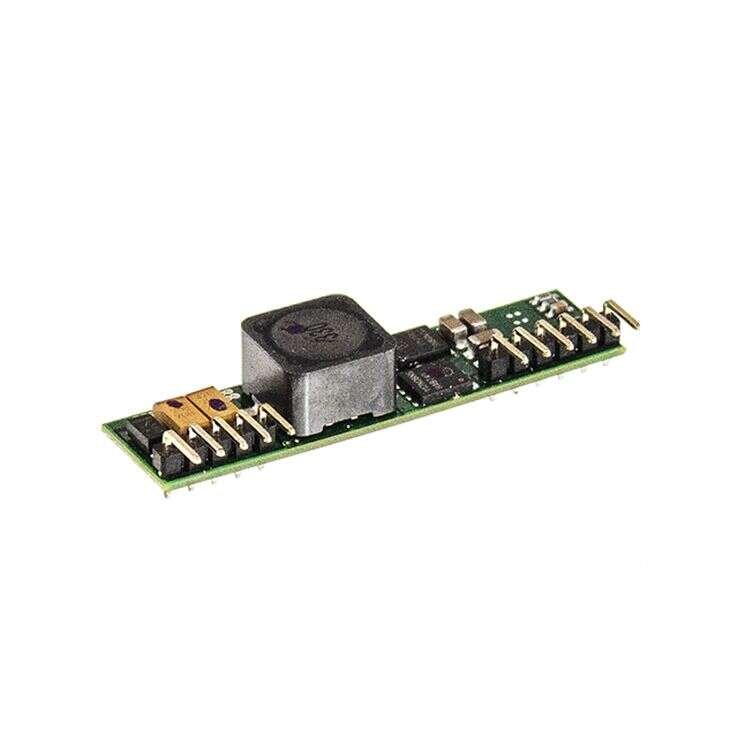

NID-35 Series
35W DC-DC Non-Isolated Regulated Converter
NID-35 Series Main Features:
Economical open frame design
Wide input range
High efficiency up to 96%
Remote ON / OFF control
Models:
Manufacturer:
Type:
Other features:
NID35-5 / NID35-12
NID35-15 / NID35-24
MEAN WELL
Onboard Type Power Supplies
Compact size 2.0"x0.512"x 0.433"
(SIP package)
Protections: Short circuit/ Overload/ Over voltage
-30~+85°C wide working temperature
Cooling by free air convection
Comply to EN55032 ClassA without
additional components
Trimming output (optional)
3 years warranty
Quote Request
| NID35-5 | NID35-12 | NID35-15 | NID35-24 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 17.5W | 34.8W | 36W | 36W | ||||||||||||
| Input Voltage | 10.5~53VDC | 20~53VDC | 20~53VDC | 30~53VDC | ||||||||||||
| Output Current | 0~3.5A | 0~2.9A | 0~2.4A | 0~1.5A | ||||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | ||||||||||||
| DC Output Options | Single | Single | Single | Single | ||||||||||||
| Dimensions | 50.8x13x11mm | 50.8x13x11mm | 50.8x13x11mm | 50.8x13x11mm | ||||||||||||
| Working Temperature | -30-+85°C | |||||||||||||||
| Satety Standards | EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6 | |||||||||||||||
