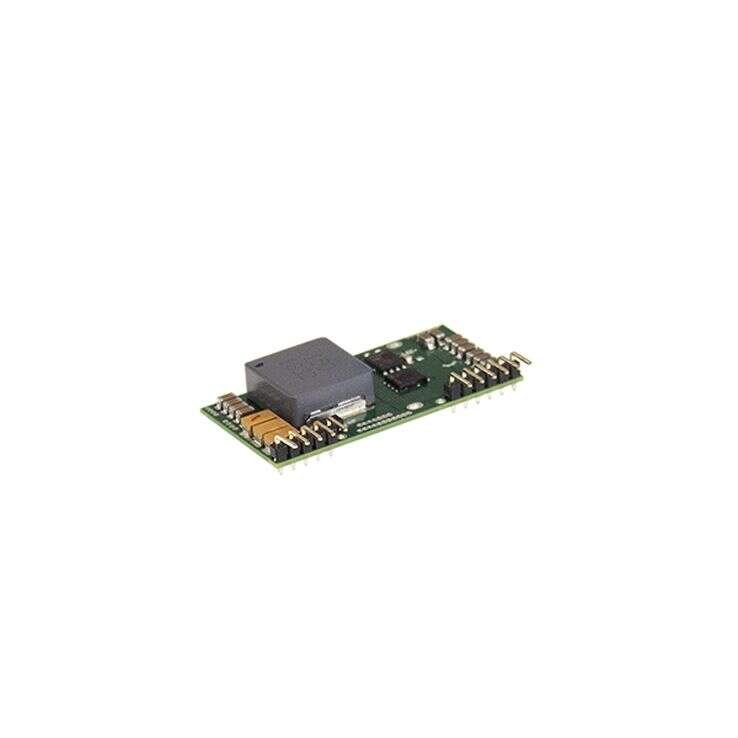

NID-65 Series
65W DC-DC Non-Isolated Regulated Converter
NID-65 Series Main Features:
Economical open frame design
Wide input range
High efficiency up to 97%
Remote ON / OFF control
Models:
Manufacturer:
Type:
Other features:
NID65-5 / NID65-12
NID65-15 / NID65-24
MEAN WELL
Onboard Type Power Supplies
Compact size 2.0"x1.024"x 0.433"
(SIP package)
Protections: Short circuit/ Overload/ Over voltage
-30~+85°C wide working temperature
Cooling by free air convection
Comply to EN55032 ClassA without
additional components
Trimming output (optional)
3 years warranty
Quote Request
| NID65-5 | NID65-12 | NID65-15 | NID65-24 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 32.5W | 58.8W | 64.5W | 64.8W | ||||||||||||
| Input Voltage | 10.5~53VDC | 20~53VDC | 20~53VDC | 30~53VDC | ||||||||||||
| Output Current | 0~6.5A | 0~4.9A | 0~4.3A | 0~2.7A | ||||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | ||||||||||||
| DC Output Options | Single | Single | Single | Single | ||||||||||||
| Dimensions | 50.8x26x11mm | 50.8x26x11mm | 50.8x26x11mm | 50.8x26x11mm | ||||||||||||
| Working Temperature | -30-+85°C | |||||||||||||||
| Satety Standards | EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6 | |||||||||||||||
