Home / DC-DC Onboard Type / NSD05-S

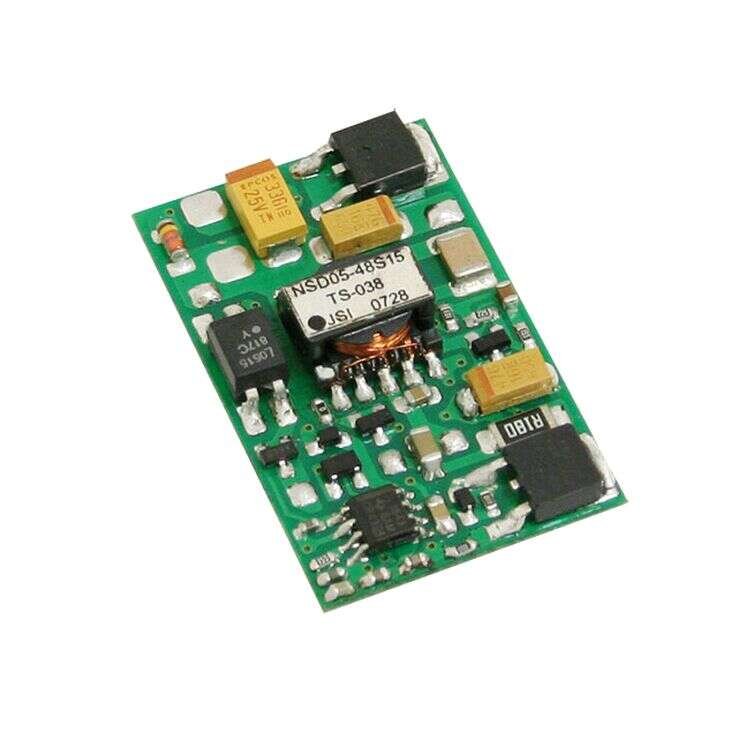

NSD05-S Series
5W DC-DC Regulated Single Output
NSD05-S Series Main Features:
Wide 4:1 DC input range
1000VDC I/O isolation
Built-in remote ON / OFF control
Models:
Manufacturer:
Type:
Other features:
NSD05-12S3 / NSD05-12S5
NSD05-12S12 / NSD05-12S15
NSD05-48S3 / NSD05-48S5
NSD05-48S12 / NSD05-48S15
MEAN WELL
Onboard Type Power Supplies
100% full load burn-in test
Protections: Short circuit/ Overload/ Over voltage
Low cost
Cooling by free air convection
High reliability
2 years warranty
Quote Request
| NSD05-12S3 | NSD05-12S5 | NSD05-12S12 | NSD05-12S15 | NSD05-48S3 | NSD05-48S5 | NSD05-48S12 | NSD05-48S15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3.96W | 5W | 5.04W | 4.95W | 3.96W | 5W | 5.04W | 4.95W | ||||||||
| Input Voltage | 9.2~36VDC | 9.2~36VDC | 9.2~36VDC | 9.2~36VDC | 18~72VDC | 18~72VDC | 18~72VDC | 18~72VDC | ||||||||
| Output Current | 1.2A | 1A | 0.42A | 0.33A | 1.2A | 1A | 0.42A | 0.33A | ||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 3.3V | 5V | 12V | 15V | ||||||||
| DC Output Options | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| Dimensions | 40.6x25.4x8.3mm | 40.6x25.4x8.3mm | 40.6x25.4x8.3mm | 40.6x25.4x8.3mm | 40.6x25.4x8.3mm | 40.6x25.4x8.3mm | 40.6x25.4x8.3mm | 40.6x25.4x8.3mm | ||||||||
| Working Temperature | -25-+70°C | |||||||||||||||
| Satety Standards | TUV EN62368-1 BS EN/ ,IEC62368-1 CB approved by TUV, approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |||||||||||||||
