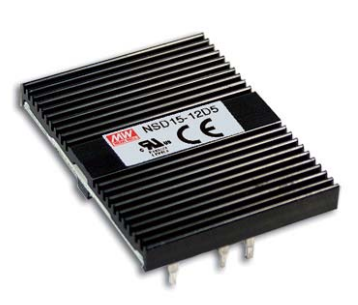

NSD15-D Series
15W DC-DC Regulated Dual Output
NSD15-D Series Main Features:
Wide 4:1 DC input range
1500VDC I/O isolation
Built-in remote ON / OFF control
Output voltage trimming function
Models:
Manufacturer:
Type:
Other features:
NSD15-12D5 / NSD15-12D12
NSD15-12D15 / NSD15-48D5
NSD15-48D12 / NSD15-48D15
MEAN WELL
Onboard Type Power Supplies
100% full load burn-in test
Protections: Short circuit/ Overload/ Over voltage
Low cost
Cooling by free air convection
Built-in EMI filter
High reliability
2 years warranty
Quote Request
| NSD15-12D5 | NSD15-12D12 | NSD15-12D15 | NSD15-48D5 | NSD15-48D12 | NSD15-48D15 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15W | 14.88W | 15W | 15W | 14.88W | 15W | ||||||||||
| Input Voltage | 9.4~36VDC | 9.4~36VDC | 9.4~36VDC | 18~72VDC | 18~72VDC | 18~72VDC | ||||||||||
| Output Current | 1.5A | 0.62A | 0.5A | 1.5A | 0.62A | 0.5A | ||||||||||
| Output Voltage | 5V, -5V | 12V, -12V | 15V, -15V | 5V, -5V | 12V, -12V | 15V, -15V | ||||||||||
| DC Output Options | Dual | Dual | Dual | Dual | Dual | Dual | ||||||||||
| Dimensions | 50.8x38.1x9.82mm | 50.8x38.1x9.82mm | 50.8x38.1x9.82mm | 50.8x38.1x9.82mm | 50.8x38.1x9.82mm | 50.8x38.1x9.82mm | ||||||||||
| Working Temperature | -25-+70°C | |||||||||||||||
| Satety Standards | UL62368-1 approved, Design refer to BS EN/EN62368-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |||||||||||||||
