Home / DC-AC True Sine Wave / NTS-1200
NTS-1200 Series

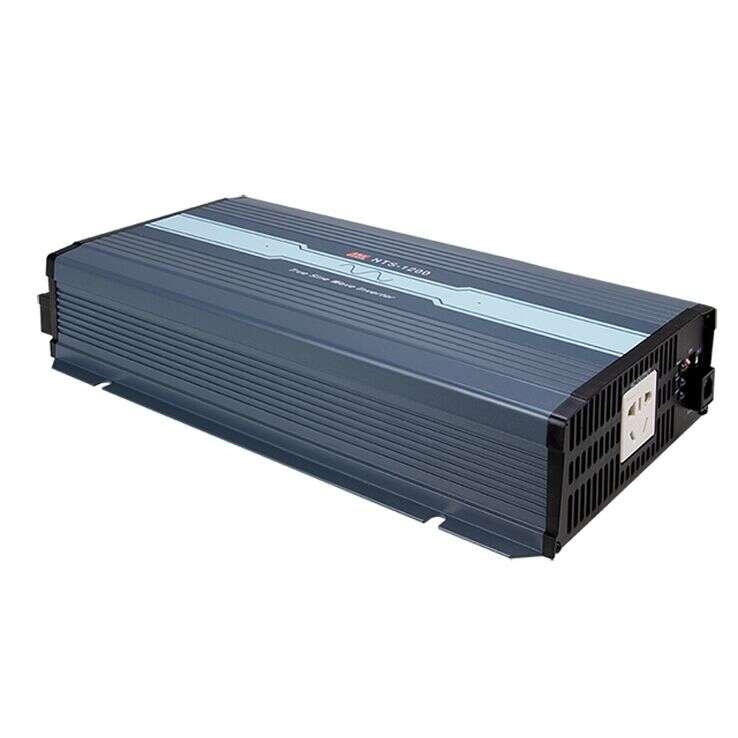

1200W High Reliable True Sine Wave DC-AC Power Inverter
NTS-1200 Series Main Features:
Compact size and light weight
High surge power up to 2000W
Temperature controlled cooling fan
Power ON-OFF remote control
Conformal coating
Models:
Manufacturer:
Type:
Other features:
NTS-1200-112 / NTS-1200-124
NTS-1200-148 / NTS-1200-212
NTS-1200-224 / NTS-1200-248
MEAN WELL
True Sine Wave Inverter
AC output voltage and frequency selectable by DIP S.W
No load disspation <1.5W max. at
standby saving mode
Protections: Input: Reverse polarity / DC
low alarm / DC low shutdown / Over vol
-tage; Output: Short circuit / Overload /
Over temp
Battery over discharge protection
Suitable for lead-acid or li-ion batteries
Carry handle accessory available
3 years warranty
Quote Request
| NTS-1200-112 | NTS-1200-124 | NTS-1200-148 | NTS-1200-212 | NTS-1200-224 | NTS-1200-248 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | ||||||||||
| Input Voltage | 10~16.5Vdc | 20~33Vdc | 40~66Vdc | 10~16.5Vdc | 20~33Vdc | 40~66Vdc | ||||||||||
| Output Voltage | 100/110/115/120 VAC selectable by DIP S.W | 100/110/115/120 VAC selectable by DIP S.W | 100/110/115/120 VAC selectable by DIP S.W | 100/110/115/120 VAC selectable by DIP S.W | 100/110/115/120 VAC selectable by DIP S.W | 100/110/115/120 VAC selectable by DIP S.W | ||||||||||
| Dimensions | 333x184x70mm | 333x184x70mm | 333x184x70mm | 333x184x70mm | 333x184x70mm | 333x184x70mm | ||||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004 approved; Design refer to AS/NZS 62368.1 | |||||||||||||||
| EMC Standards | FCC for 112,124,148 only, BS EN/EN55032(CISPR32) for 212,224,248 only, BS EN/EN61000-3-2 , BS EN/EN61000-3-3, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-8 | |||||||||||||||
