NTS-2200 Series

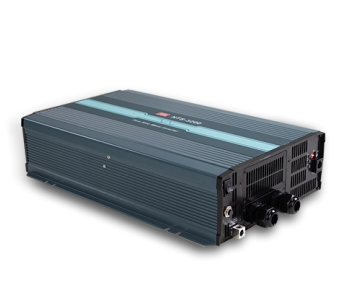

2200W High Reliable True Sine Wave DC-AC Power Inverter

NTS-2200

NTS-2200 Series Main Features:

Compact size and light weight

High surge power up to 4400W

Temperature controlled cooling fan

Power ON-OFF remote control

Conformal coating

Models:

Manufacturer:

Type:

Other features:

NTS-2200-112 / NTS-2200-124
NTS-2200-148 / NTS-2200-212
NTS-2200-224 / NTS-2200-248

MEAN WELL

True Sine Wave Inverter

AC output voltage and frequency selectable by DIP S.W

No load disspation <1.7W max. at
standby saving mode

Protections: Input: Reverse polarity / DC
low alarm / DC low shutdown / Over vol
-tage; Output: Short circuit / Overload /
Over temp

Battery over discharge protection

Suitable for lead-acid or li-ion batteries

Carry handle accessory available

3 years warranty

Quote Request

[wpforms id="1665" title="false"]
NTS-2200-112NTS-2200-124NTS-2200-148NTS-2200-212NTS-2200-224NTS-2200-248
Wattage220022002200220022002200
Input Voltage10~16.5Vdc20~33Vdc40~66Vdc10~16.5Vdc20~33Vdc40~66Vdc
Output Voltage100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W
Dimensions420x270x98mm420x270x98mm420x270x98mm420x270x98mm420x270x98mm420x270x98mm
Working Temperature-25~+70°C
Satety StandardsCB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, UL62368-1, E13,EAC TP TC 004,AS/NZS 62368.1 approved
EMC StandardsFCC for 112,124,148 only, BS EN/EN55032(CISPR32) for 212,224,248 only, BS EN/EN61000-3-2 , BS EN/EN61000-3-3, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-8
Download Data Table
