Home / DC-AC True Sine Wave / NTS-400P

NTS-400P Series

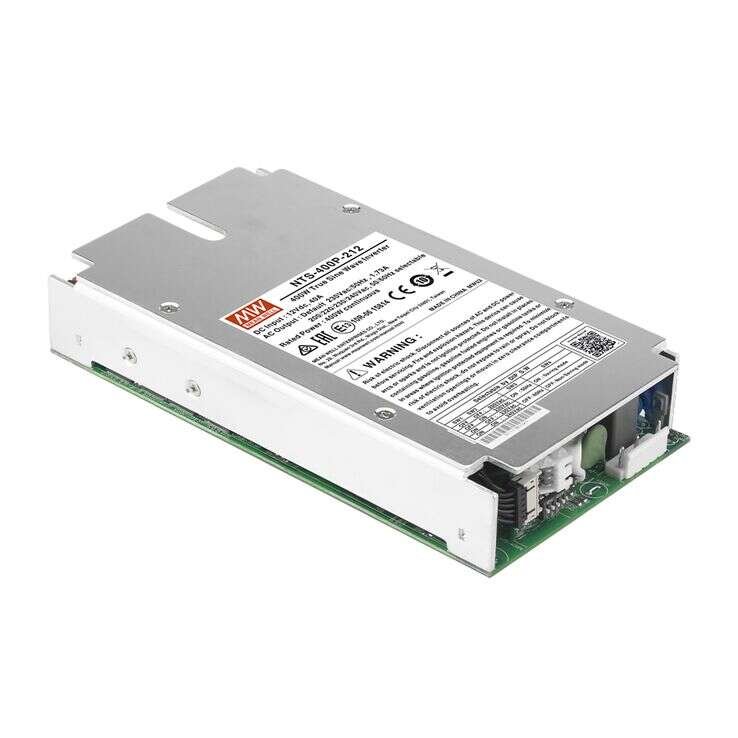

400W High Reliable Built-in Type True Sine Wave DC-AC Power Inverter

NTS-400P

NTS-400P Series Main Features:

Compact size and light weight

High surge power up to 500W

Fanless design, cooling by free air convection

Power ON-OFF remote control

Conformal coating

Models:

Manufacturer:

Type:

Other features:

NTS-400P-112 / NTS-400P-124
NTS-400P-148 / NTS-400P-212
NTS-400P-224 / NTS-400P-248

MEAN WELL

True Sine Wave Inverter

AC output voltage and frequency selectable by DIP S.W

No load disspation <1.5W max. at
standby saving mode

Protections: Input: Reverse polarity / DC
low alarm / DC low shutdown / Over vol
-tage; Output: Short circuit / Overload /
Over temp

Battery over discharge protection

Suitable for lead-acid or li-ion batteries

Support MODBus-RTU(RS-485) communica-tion

3 years warranty

Quote Request

    NTS-400P-112NTS-400P-124NTS-400P-148NTS-400P-212NTS-400P-224NTS-400P-248
    Wattage400400400400400400
    Input Voltage10~16.5Vdc20~33Vdc40~66Vdc10~16.5Vdc20~33Vdc40~66Vdc
    Output Voltage100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W
    Dimensions186x100.5x32mm186x100.5x32mm186x100.5x32mm186x100.5x32mm186x100.5x32mm186x100.5x32mm
    Working Temperature-20~+70°C
    Satety StandardsCB IEC62368-1 for all models; E13, EAC TPTC004, AS/NZS 62368.1 for NTS-400P-212/224/248 approved
    EMC StandardsFCC for 112,124,148 only, BS EN/EN55032(CISPR32) for 212,224,248 only, BS EN/EN61000-3-2 , BS EN/EN61000-3-3, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-8
