Home / DC-AC True Sine Wave / NTU-1200

NTU-1200 Series

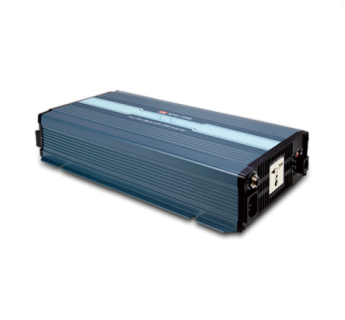

1200W High Reliable True Sine Wave with UPS DC-AC Power Inverter

NTU-1200

NTU-1200 Series Main Features:

Built-in UPS function(AC by-pass)

High surge power up to 2000W

Temperature controlled cooling fan

Power ON-OFF remote control

Conformal coating

Models:

Manufacturer:

Type:

Other features:

NTU-1200-112 / NTU-1200-124
NTU-1200-148 / NTU-1200-212
NTU-1200-224 / NTU-1200-248

MEAN WELL

True Sine Wave Inverter

AC output voltage and frequency selectable by DIP S.W

Front panel indicator for operation status

Protections: Input: Reverse polarity / DC
low alarm / DC low shutdown / Over vol
-tage; Output: Short circuit / Overload /
Over temp

Battery over discharge protection

Suitable for lead-acid or li-ion batteries

Carry handle accessory available

Remote controller

3 years warranty

Quote Request

    NTU-1200-112NTU-1200-124NTU-1200-148NTU-1200-212NTU-1200-224NTU-1200-248
    Wattage120012001200120012001200
    Input Voltage10~16.5Vdc20~33Vdc40~66Vdc10~16.5Vdc20~33Vdc40~66Vdc
    Output Voltage100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W
    Dimensions333x184x70mm333x184x70mm333x184x70mm333x184x70mm333x184x70mm333x184x70mm
    Working Temperature-25~+70°C
    Satety StandardsCB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004 approved; Design refer to AS/NZS 62368.1
    EMC StandardsFCC for 112,124,148 only, BS EN/EN55032(CISPR32) for 212,224,248 only, BS EN/EN61000-3-2 , BS EN/EN61000-3-3, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-8
