Home / DC-AC True Sine Wave / NTU-2200

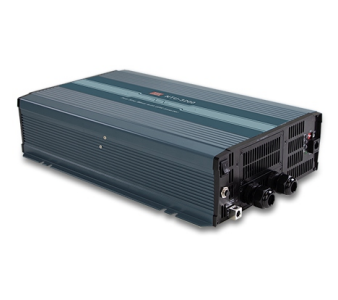

NTU-2200 Series

2200W High Reliable True Sine Wave with UPS DC-AC Power Inverter

NTU-2200

NTU-2200 Series Main Features:

Built-in UPS function(AC by-pass)

High surge power up to 4400W

Temperature controlled cooling fan

Power ON-OFF remote control

Conformal coating

Models:

Manufacturer:

Type:

Other features:

NTU-2200-112 / NTU-2200-124
NTU-2200-148 / NTU-2200-212
NTU-2200-224 / NTU-2200-248

MEAN WELL

True Sine Wave Inverter

AC output voltage and frequency selectable by DIP S.W

Front panel indicator for operation status

Protections: Input: Reverse polarity / DC
low alarm / DC low shutdown / Over vol
-tage; Output: Short circuit / Overload /
Over temp

Battery over discharge protection

Suitable for lead-acid or li-ion batteries

Carry handle accessory available

Remote controller

3 years warranty

Quote Request

    NTU-2200-112NTU-2200-124NTU-2200-148NTU-2200-212NTU-2200-224NTU-2200-248
    Wattage220022002200220022002200
    Input Voltage10~16.5Vdc20~33Vdc40~66Vdc10~16.5Vdc20~33Vdc40~66Vdc
    Output Voltage100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W100/110/115/120 VAC selectable by DIP S.W
    Dimensions420x270x98mm420x270x98mm420x270x98mm420x270x98mm420x270x98mm420x270x98mm
    Working Temperature-25~+70°C
    Satety StandardsCB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved
    EMC StandardsFCC for 112,124,148 only, BS EN/EN55032(CISPR32) for 212,224,248 only, BS EN/EN61000-3-2 , BS EN/EN61000-3-3, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-8
