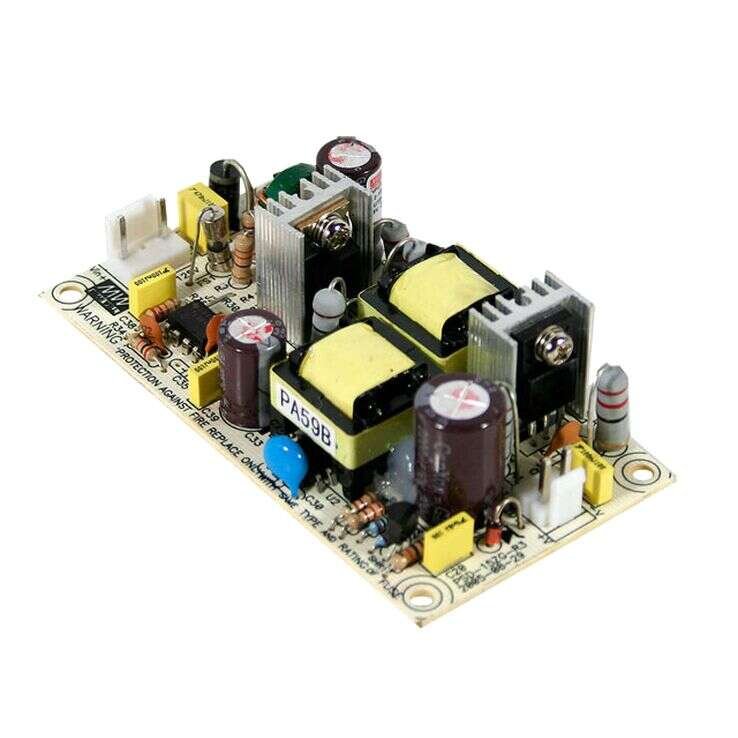

PSD-15 Series
15W DC-DC Single Output Switching Power Supply
PSD-15 Series Main Features:
Protections: Short circuit/ Overload/
Over voltage/ Polarity
Models:
Manufacturer:
Type:
Other features:
PSD-15A-05 / PSD-15B-05
PSD-15C-05 / PSD-15A-12
PSD-15B-12 / PSD-15C-12
PSD-15A-24 / PSD-15B-24
PSD-15C-24
MEAN WELL
PCB Type Power Supplies
100% full load burn-in test
Cooling by free air convection
Low cost
High reliability
2 years warranty
Quote Request
| PSD-15A-05 | PSD-15B-05 | PSD-15C-05 | PSD-15A-12 | PSD-15B-12 | PSD-15C-12 | PSD-15A-24 | PSD-15B-24 | PSD-15C-24 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15W | 15W | 15W | 15W | 15W | 15W | 14.4W | 14.4W | 14.4W | |||||||
| Input Voltage | 9.2~18VDC | 18~36VDC | 36~72VDC | 9.2~18VDC | 18~36VDC | 36~72VDC | 9.2~18VDC | 18~36VDC | 36~72VDC | |||||||
| Output Current | 3A | 3A | 3A | 1.25A | 1.25A | 1.25A | 0.6A | 0.6A | 0.6A | |||||||
| Output Voltage | 5V | 5V | 5V | 12V | 12V | 12V | 15V | 15V | 15V | |||||||
| DC Output Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 94x49x25mm | 94x49x25mm | 94x49x25mm | 94x49x25mm | 94x49x25mm | 94x49x25mm | 94x49x25mm | 94x49x25mm | 94x49x25mm | |||||||
| Working Temperature | -10-+60°C | |||||||||||||||
| Satety Standards | EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032(CISPR32) CLASS B, EAC TP TC 020 | |||||||||||||||
