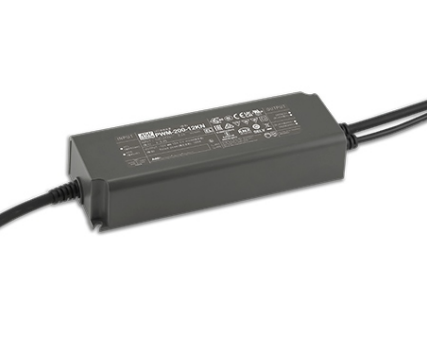

PWM-200-KN Series
60W Constant Voltage PWM Output KNX LED Driver
PWM-200-KN Series Main Features:
Constant Voltage PWM style output with user changeable frequency up to 4KHz design compliant IEEE1789-2015 and EU Ecodesign SVM requirement
Models:
Manufacturer:
Type:
Other features:
PWM-200-12KN / PWM-200-24KN
PWM-200-36KN / PWM-200-48KN
MEAN WELL
KNX LED Power
Min. dimming level 0.01%
Plastic housing with class II design
Standby power consumption <0.5W
Integrated KNX control protocol
No need KNX-DALI gateway
Typical lifetime>50000 hours
5 years warranty
Quote Request
| PWM-200-12KN | PWM-200-24KN | PWM-200-36KN | PWM-200-48KN | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 180 | 199.2 | 199.8 | 200.1 | ||||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | ||||||||||||
| Output Current | 15A | 8.3A | 5.55A | 4.17A | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Output Voltage | 12V | 24V | 36V | 48V | ||||||||||||
| Dimensions | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | ||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, EAC TP TC 004,GB19510.1,GB19510.14, IS15885(Part2/Sec13)(except for 36V) approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1;EAC TP TC 020 | |||||||||||||||
