Home / DC-AC True Sine Wave / TN-3000

TN-3000 Series

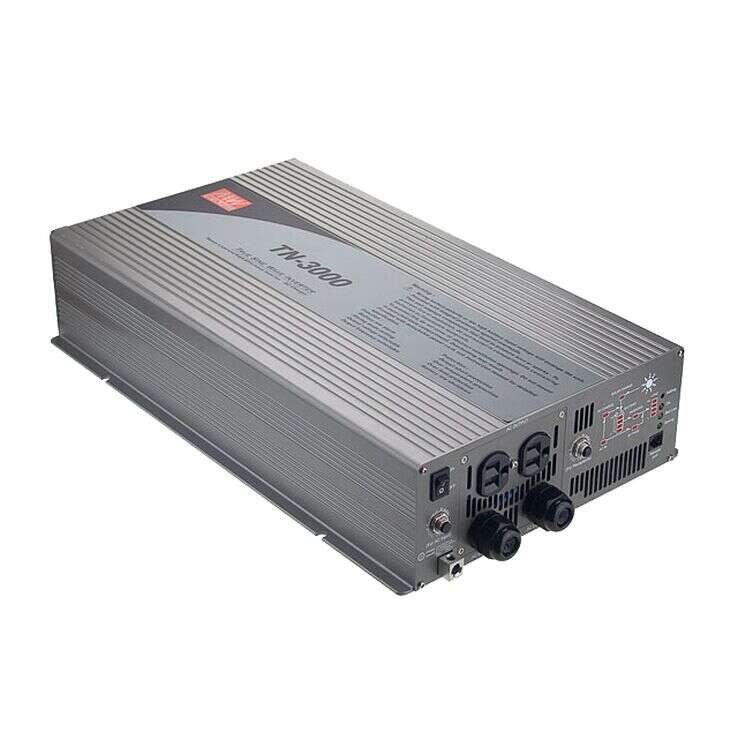

3000W True Sine Wave DC-AC Inverter with Solar Charger

TN-3000

TN-3000 Series Main Features:

U.P.S. mode and energy saving mode

High surge power up to 6000W

High efficiency up to 92%

Power ON-OFF remote control

Built-in solar / AC charger

Models:

Manufacturer:

Type:

Other features:

TN-3000-112 / TN-3000-124
TN-3000-148 / TN-3000-212
TN-3000-224 / TN-3000-248

MEAN WELL

True Sine Wave Inverter

Standby saving mode can be selectable

Front panel indicator for operation status

Protections: Input polarity Reverse / Bat.
low alarm / Bat. low shutdown / Over
voltage / Over temp. / Output short /
Over-load / Output short / AC circuit breaker

Thermostatically controlled cooling fan

Support RS-232 communication Note.7

3 years warranty

Quote Request

    TN-3000-112TN-3000-124TN-3000-148TN-3000-212TN-3000-224TN-3000-248
    Wattage300030003000300030003000
    Input Voltage10.5~15Vdc21~30Vdc42~60Vdc10.5~15Vdc21~30Vdc42~60Vdc
    Output Voltage100/110/115/120 VAC selectable by setting button S.W100/110/115/120 VAC selectable by setting button S.W100/110/115/120 VAC selectable by setting button S.W200/220/230/240 VAC selectable by setting button S.W200/220/230/240 VAC selectable by setting button S.W200/220/230/240 VAC selectable by setting button S.W
    Dimensions466.8x283.5x100mm466.8x283.5x100mm466.8x283.5x100mm466.8x283.5x100mm466.8x283.5x100mm466.8x283.5x100mm
    Working Temperature0~+40°C
    Satety StandardsU 458 ( L only for "GFCI" receptacle-Type F ), EAC TP TC 004EAC TP TC 004IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
    EMC StandardsCompliance to FCC class A, EAC TP TC 020Compliance to EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, BS EN/ EAC TP TC 020
