Home / DC-DC Module Type / DCW08

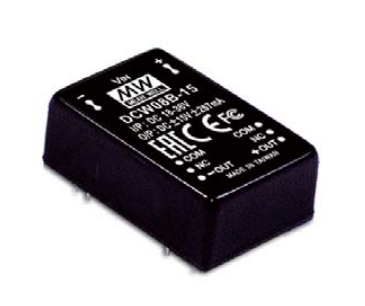

DCW08 Series
8W DC-DC Regulated Dual Output Converter
DCW08 Series Main Features:
1500VDC I/O isolation
2:1 wide input range
Built-in EMI filter
Models:
Manufacturer:
Type:
Other features:
DCW08A-05 / DCW08B-05
DCW08C-05 / DCW08A-12
DCW08B-12 / DCW08C-12
DCW08A-15 / DCW08B-15
DCW08C-15
MEAN WELL
Module
Cooling by free air convection
Protections: Short circuit / Overload
Five-sided shield metal case
100% burn-in test
Low cost / High reliability
2 years warranty
Quote Request
| DCW08A-05 | DCW08B-05 | DCW08C-05 | DCW08A-12 | DCW08B-12 | DCW08C-12 | DCW08A-15 | DCW08B-15 | DCW08C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||||||||
| Input Voltage | 9~18VDC | 18~36VDC | 36~72VDC | 9~18VDC | 18~36VDC | 36~72VDC | 9~18VDC | 18~36VDC | 36~72VDC | ||||||||
| Output Current | ±160~800mA | ±160~800mA | ±160~800mA | ±66~335mA | ±66~335mA | ±66~335mA | ±52~267mA | ±52~267mA | ±52~267mA | ||||||||
| Output Voltage | ±5V | ±5V | ±5V | ±12V | ±12V | ±12V | ±15V | ±15V | ±15V | ||||||||
| Dimensions | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | ||||||||
| Working Temperature | -40~+71°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | ||||||||||||||||
